Window Components

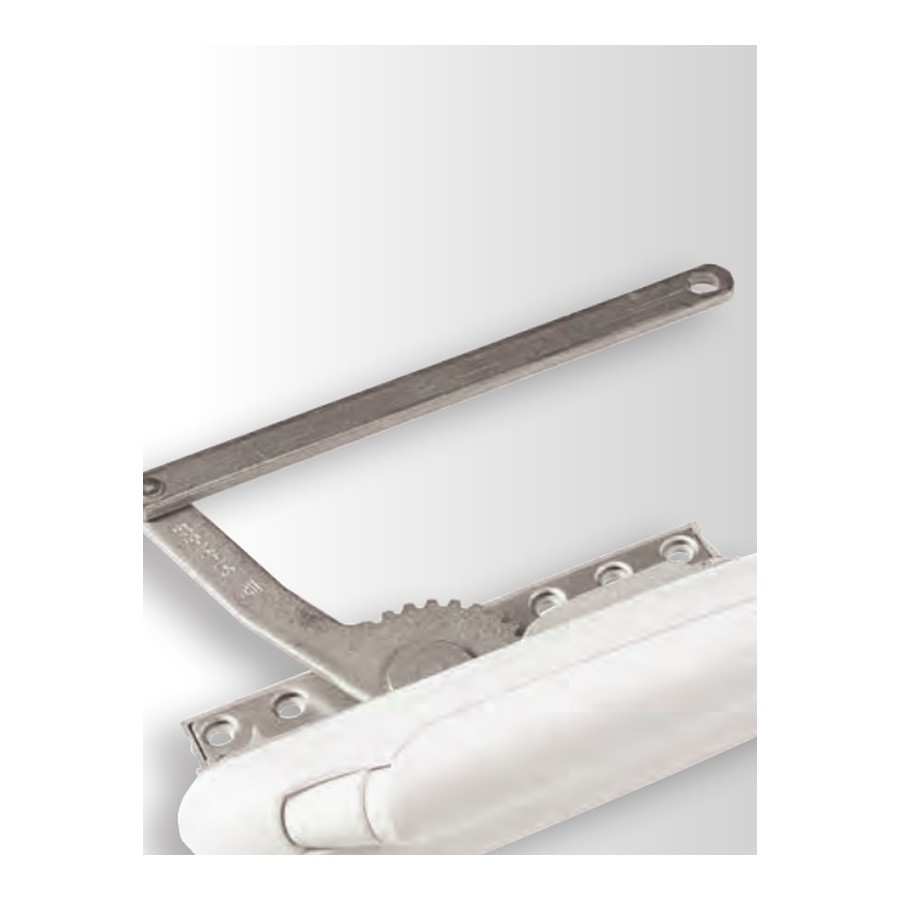

Optima™ Dyad Casement Operator

Material

Coastal grade stainless steel with composite base

Coastal stainless steel dyad operator for casement sashes 15-1/2" to 24" wide, with a short dyad for 15" to 16" and a reverse configuration down to 13-1/2". O-ring sealed, composite base, AAMA commercial grade. PDF brochure available.

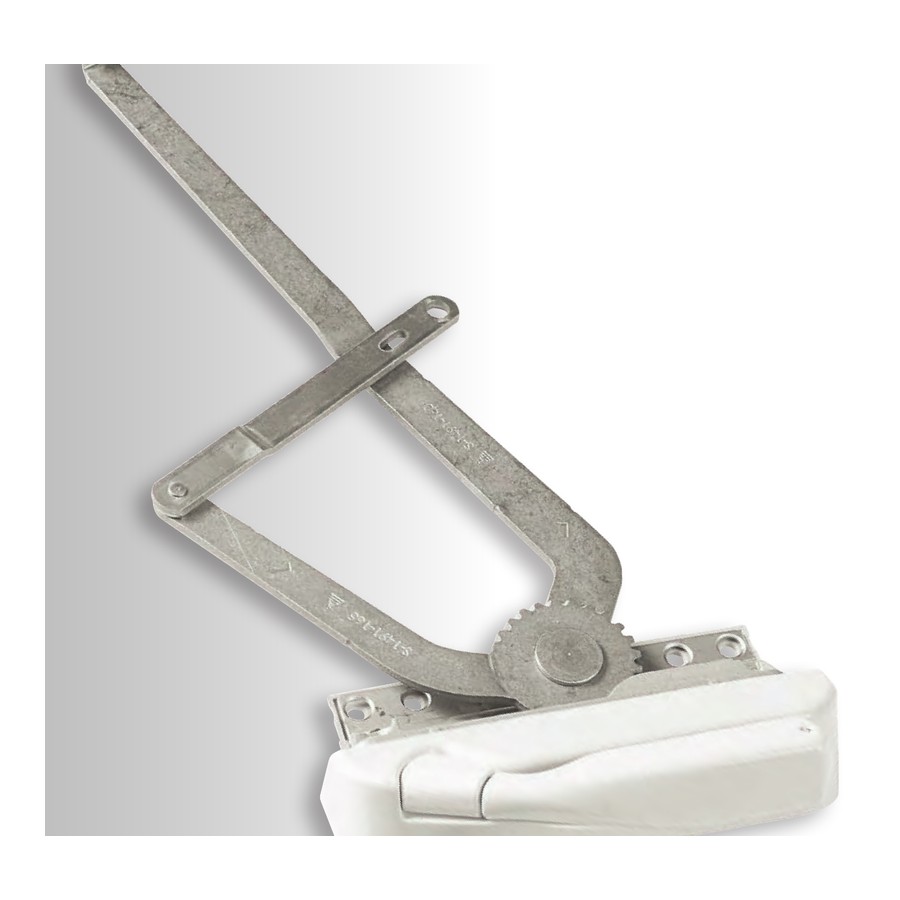

Optima™ Dual-Arm Casement Operator

Material

Coastal grade stainless steel with composite base

Dual-arm casement operator for sashes 24" to 36" wide, running on the W1491-75A track assembly. Unique O-ring seal holds back 4x more water, and longer nesting cranks give up to 15% more mechanical advantage. PDF brochure available.

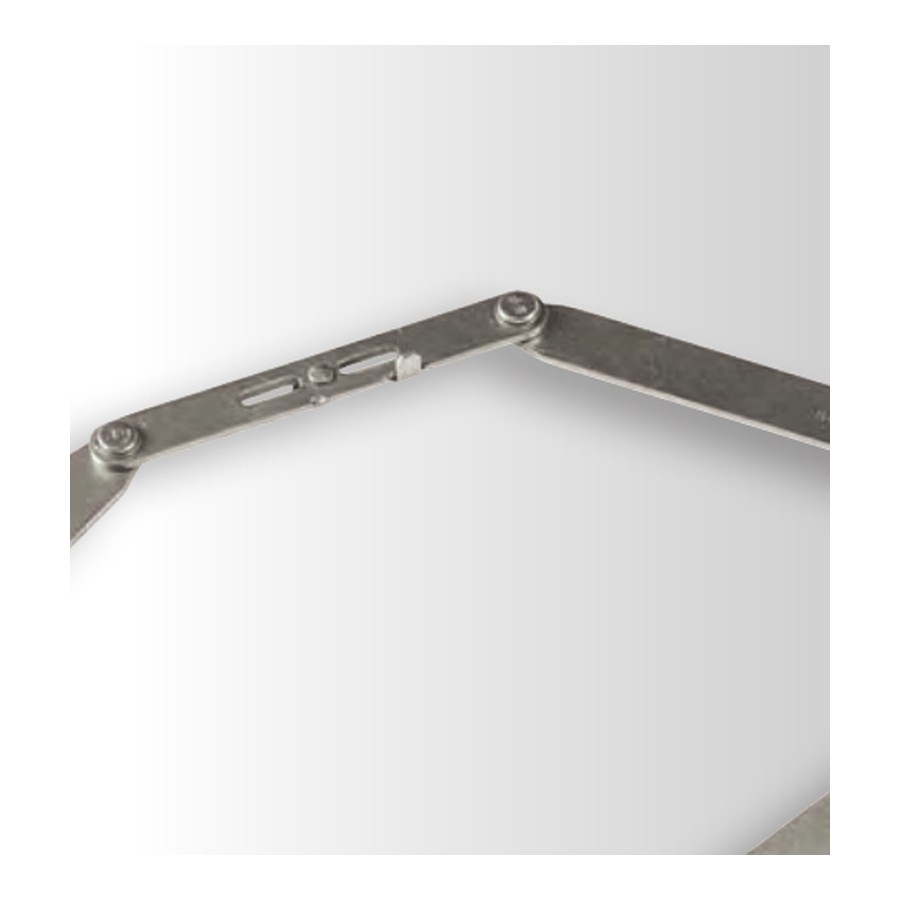

Optima™ Awning Operator

Material

Coastal grade stainless steel with composite base

Awning operator in 12" and 16" arm lengths, used with the W1081-54 stainless sash bracket. Pre-installed frame gasket, low wear joints, and the same visual and finish options as the casement operators. PDF brochure available.

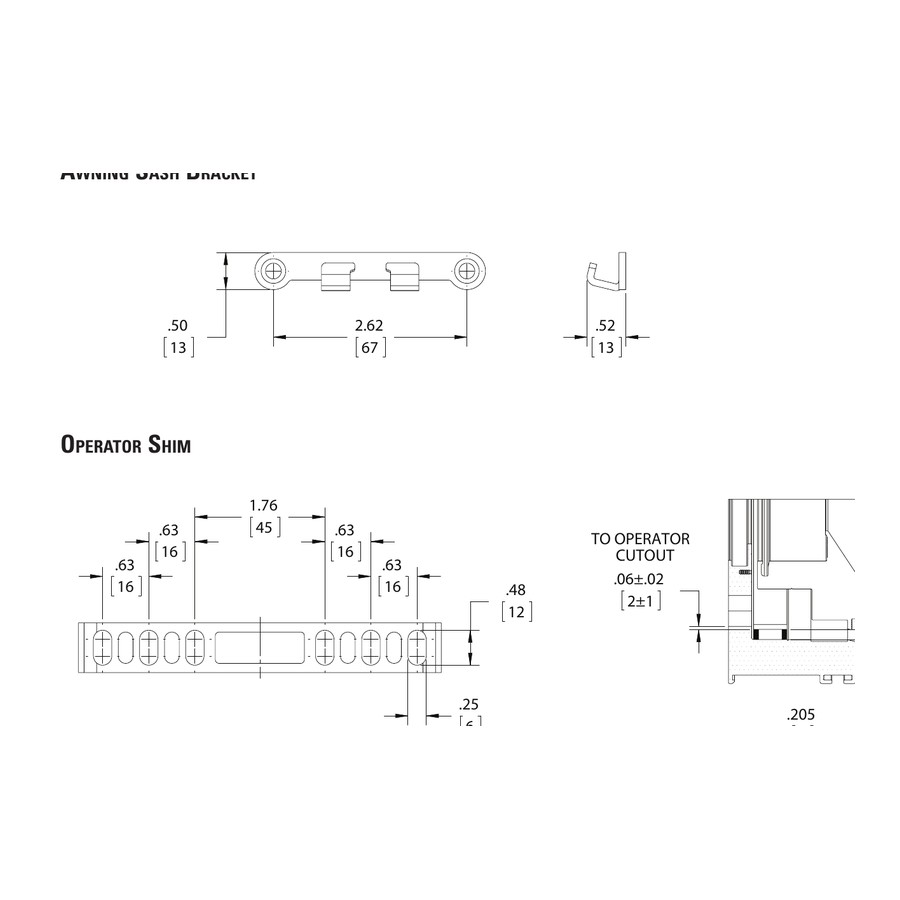

Optima™ Operator Tracks, Sash Brackets & Shims

Material

Coastal grade stainless steel

Stainless dual-arm track assembly, self-locating and standard casement sash brackets, vertical mount brackets, the awning sash bracket, and operator shims. PDF brochure available.

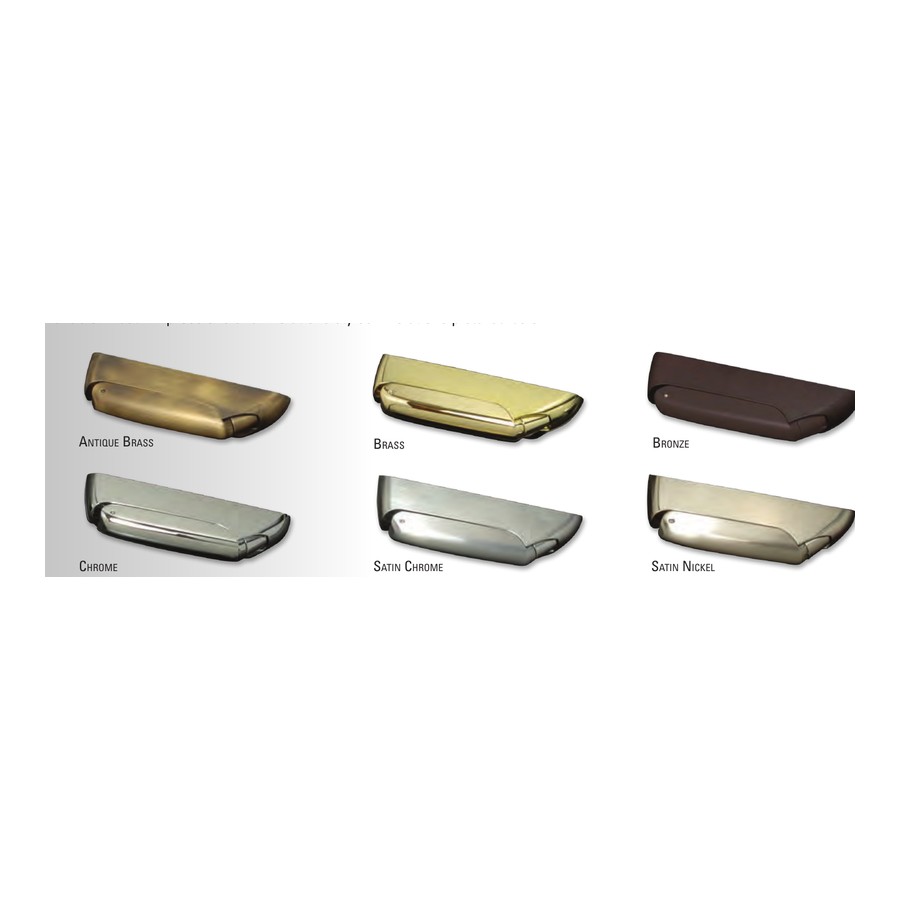

Optima™ Operator Visual Packs

Removable fold-down and nesting crank handles and covers in Evolutions and Expressions styles, left and right hand, in 21 powder coat colours and plated finishes. Both handle and cover options fit the same operator. PDF brochure available.

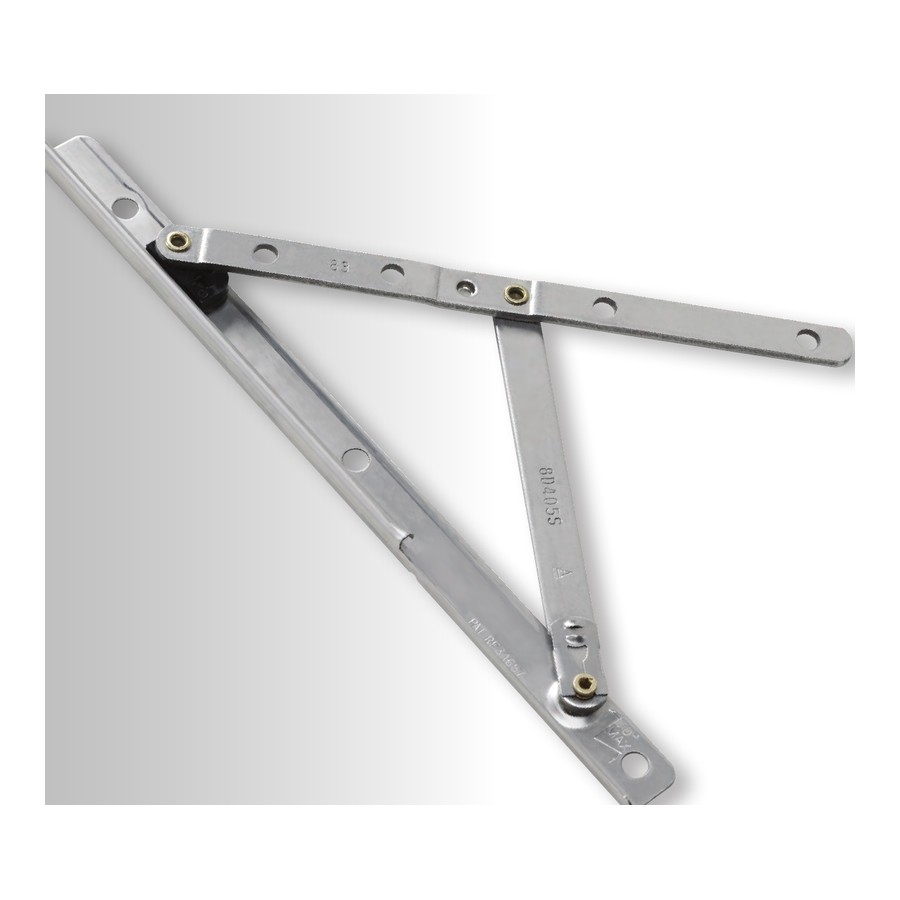

Optima™ Concealed Casement Hinges

Material

Coastal grade stainless steel with brass rivets

Concealed 10" and 14" casement hinges in standard, wash, and egress arm styles on 7/16" or 1/2" stack heights, paired with adjustable tracks. Adjusts .078" in both directions with a flat wrench or a 7/64" Allen key. PDF brochure available.

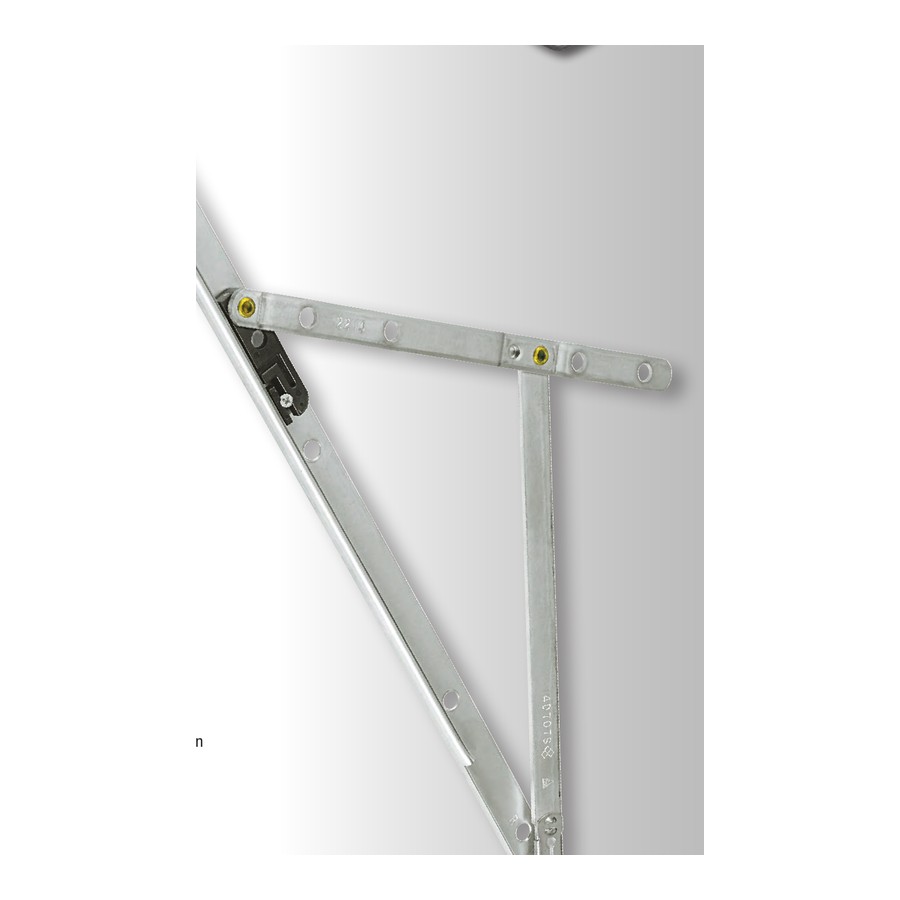

Optima™ Concealed Awning Hinges

Material

Coastal grade stainless steel with brass rivets

Concealed awning hinges in 10", 14", 18", and 22" lengths on 7/16" or 1/2" stack heights, sized to frame heights from 12" to 48", with non-adjustable tracks and a 2" shoe carrying an offset friction adjustment screw. PDF brochure available.

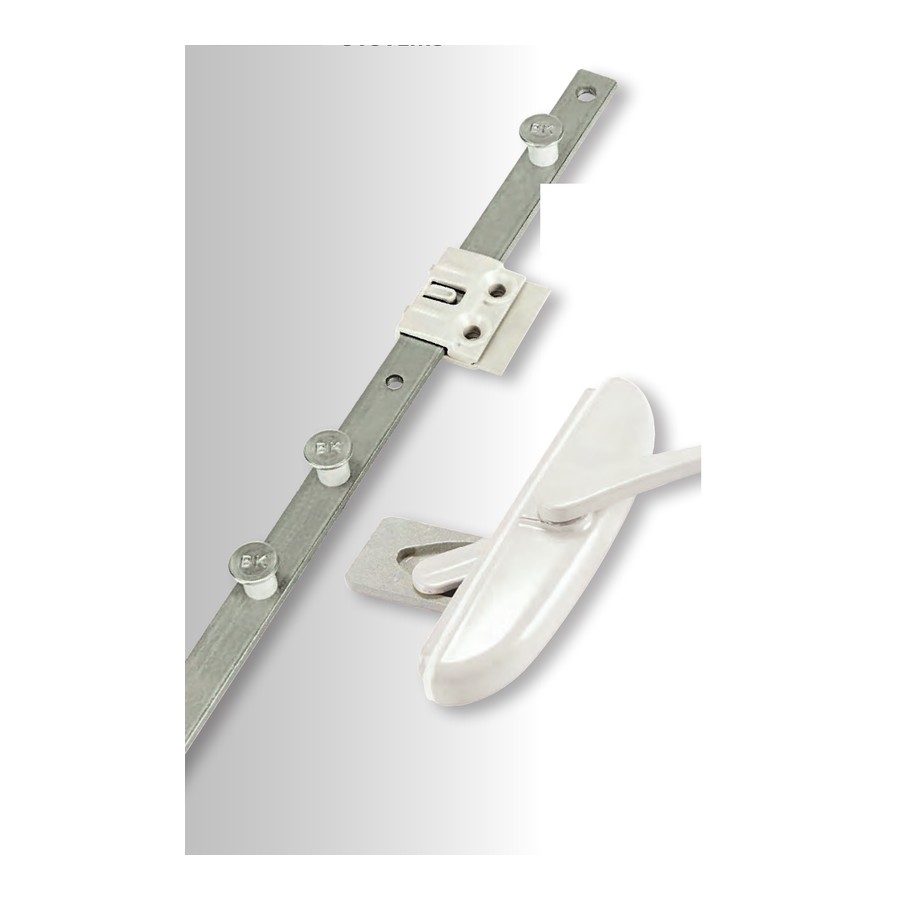

Optima™ Multi-Point Casement Lock System

Material

Coastal grade stainless steel with composite rollers

Multi-point casement lock covering frame heights from 20" to 80" in 2, 3, and 4 point configurations. 30% longer lock bar travel gives industry best sash pull-in, and interlocking pins and keepers reach DP90. PDF brochure available.

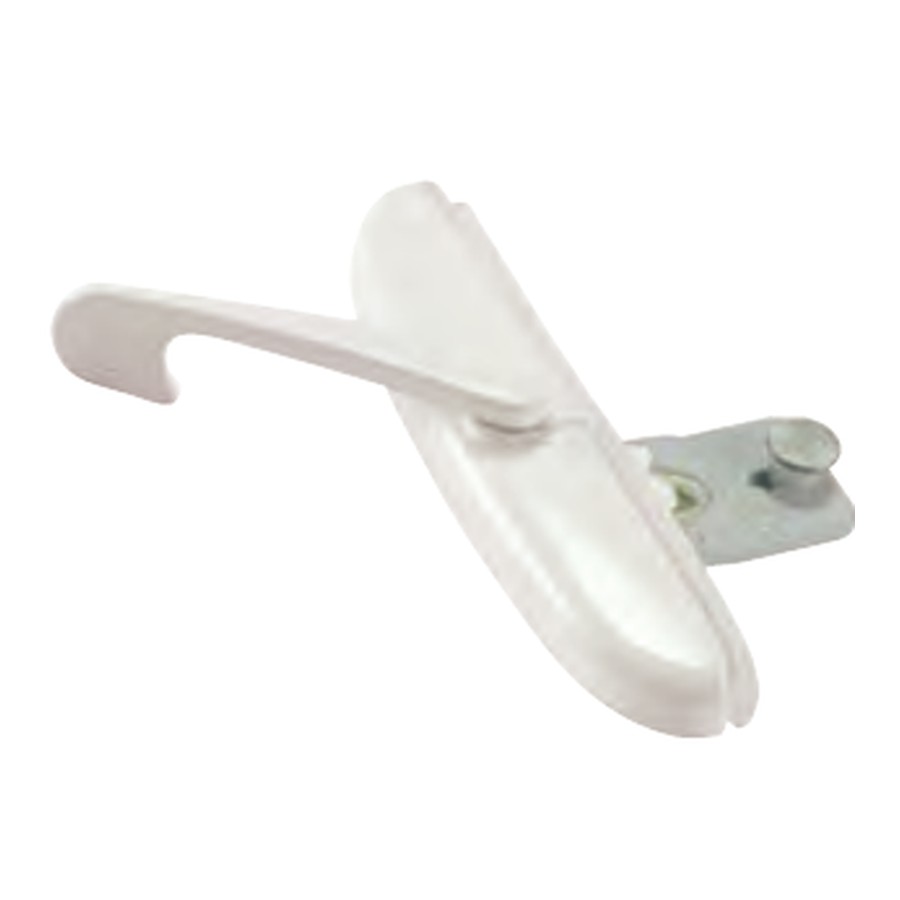

Optima™ Awning Lock & Actuators

Material

Coastal grade stainless steel

Single-point awning lock that performs like a multi-point system and shares the casement keepers. Two locks per awning window, with actuators in a 1.18" or 1.05" pin location and matching casement handle styling. PDF brochure available.

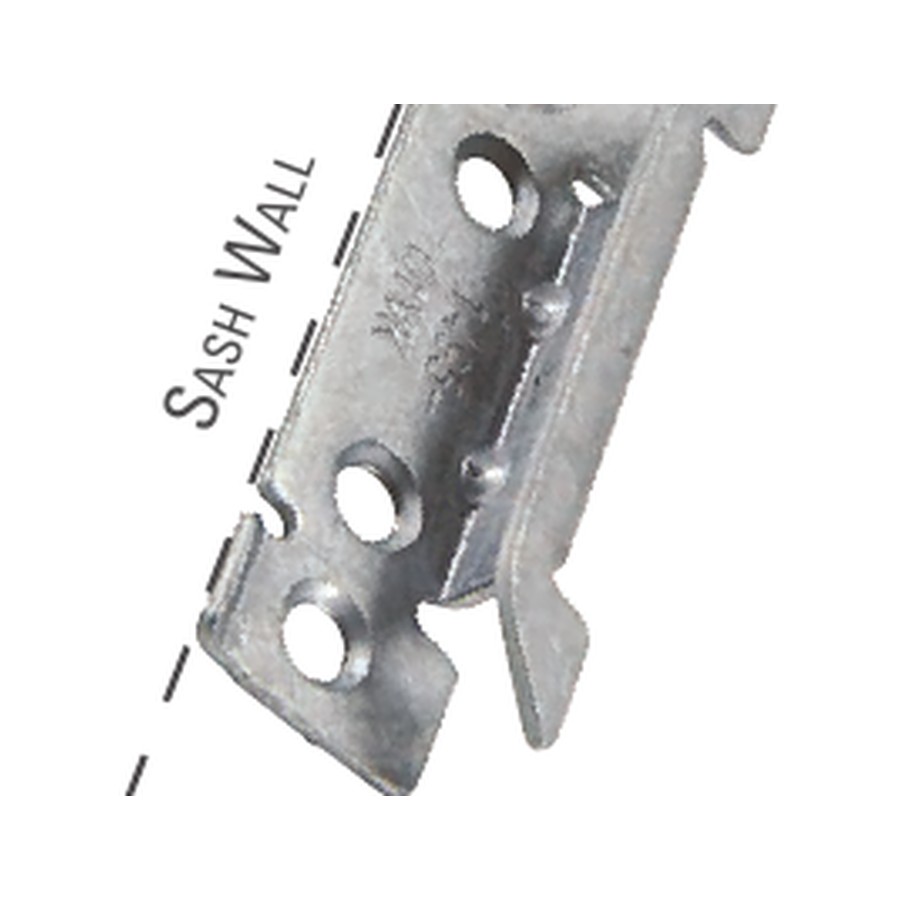

Optima™ Keepers, Retainers & Backing Plates

Material

Coastal grade stainless steel

Nine self-locating keeper profiles, lock bar retainers, and lock backing plates for tuning cavity depth, pull-in, and weather seal compression on Optima casement and awning locks. PDF brochure available.

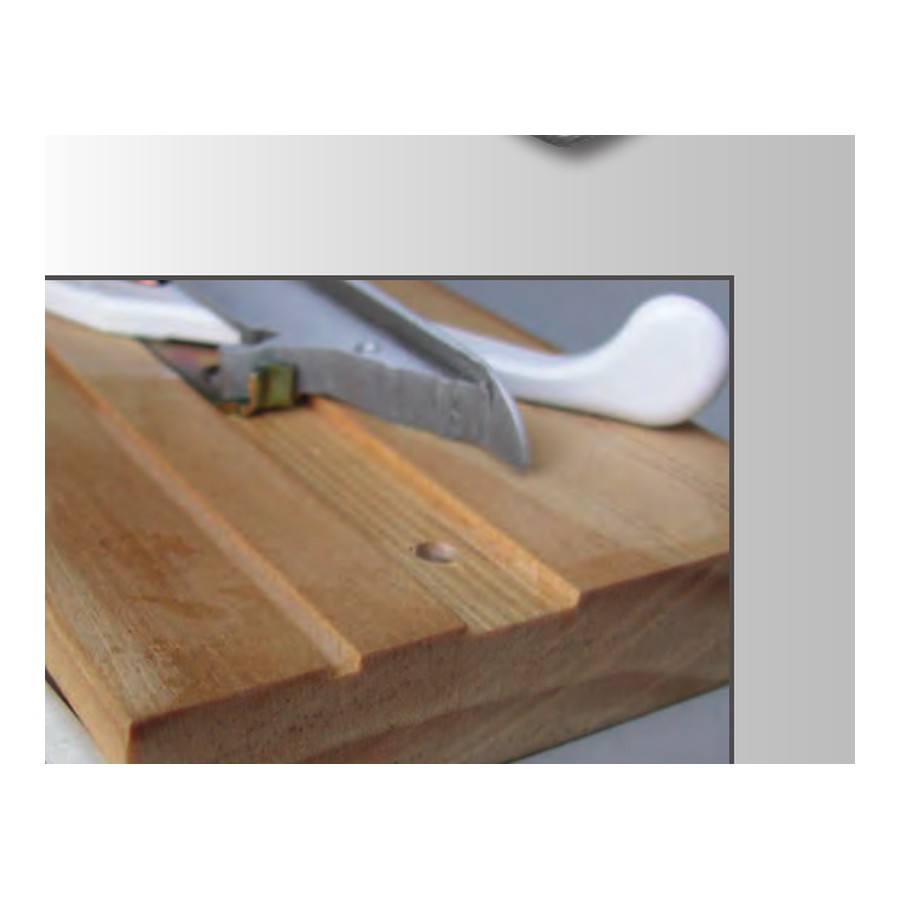

Optima™ Multi-Point Casement Lock System for Wood Windows

Material

Coastal grade stainless steel

Low profile wood casement and awning lock with the actuator integral to a pre-assembled, non-handed lock bar, in 1, 2, and 3 point lengths for frame heights from 24" to 89". Fits under most wood casement stops with minimal stop removal. DP70. PDF brochure available.

Optima™ Casement & Awning Snubbers

Material

Stainless steel

Concealed hinge-track snubbers — standard compression, angled for high wind load, interlocking and high impact versions for coastal cycling tests, plus a 2" compression snubber for the lock pocket. PDF brochure available.

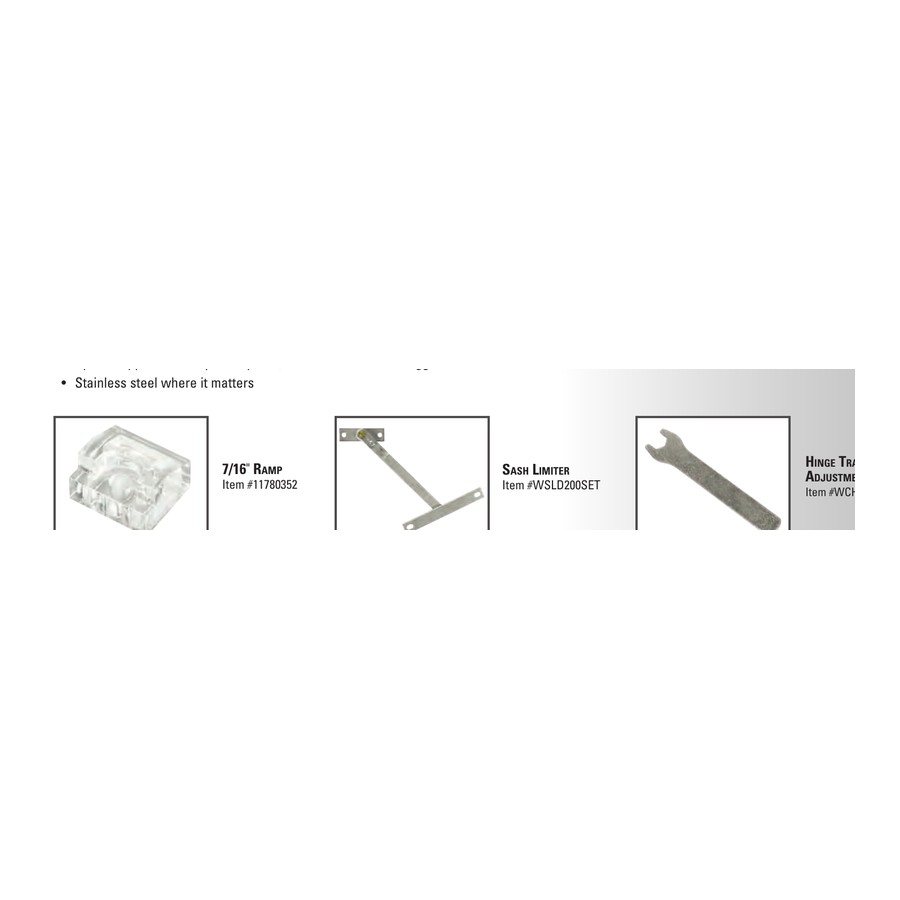

Optima™ Casement Accessories

Add-on parts for casement manufacturing and service: the 7/16" ramp, the sash limiter set, and the hinge track adjustment wrench. PDF brochure available.

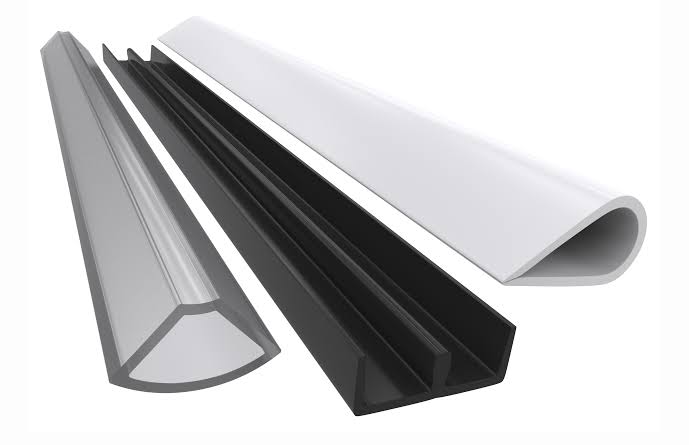

Custom Fenestration Gaskets & Seals

Precision-engineered gaskets and seals via Custom Gaskets Ltd., designed to spec for any fenestration system.

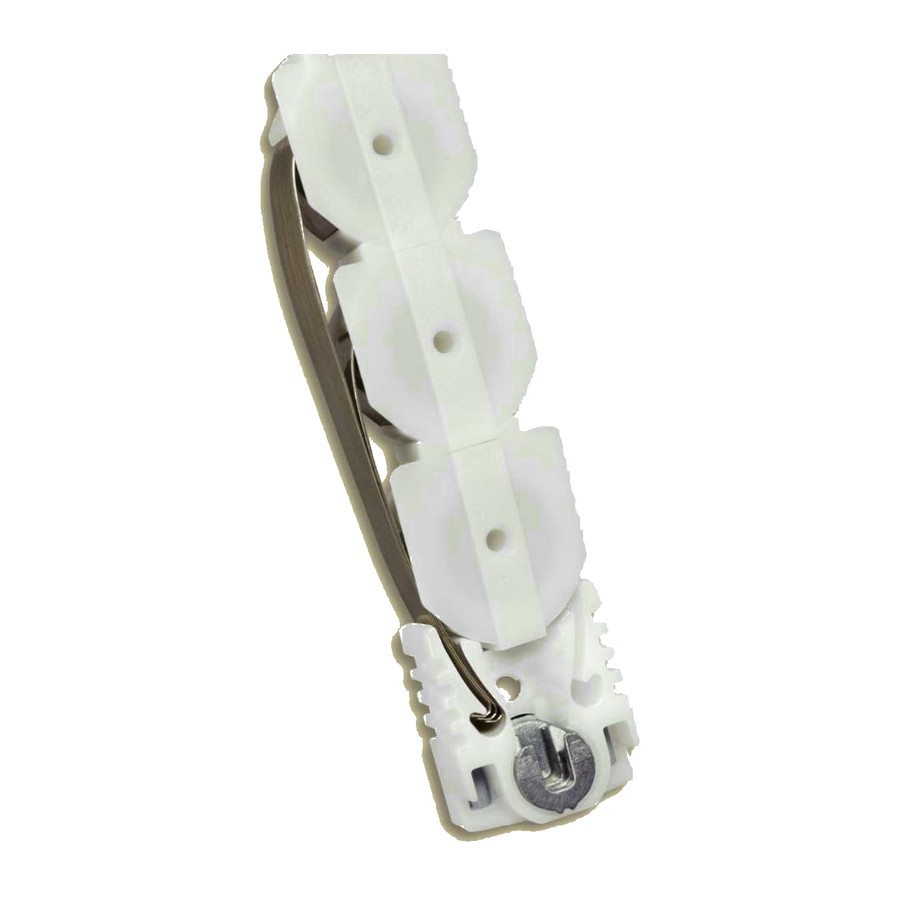

PivotTrue® G3 Coil Balance System

Material

Glass-filled nylon with zinc alloy cam

Stackable coil balance assembly for heavier hung window sashes. Interlocking spring holders take up to four springs, and assemblies ship ready to drop into the jamb. PDF spec sheet available.

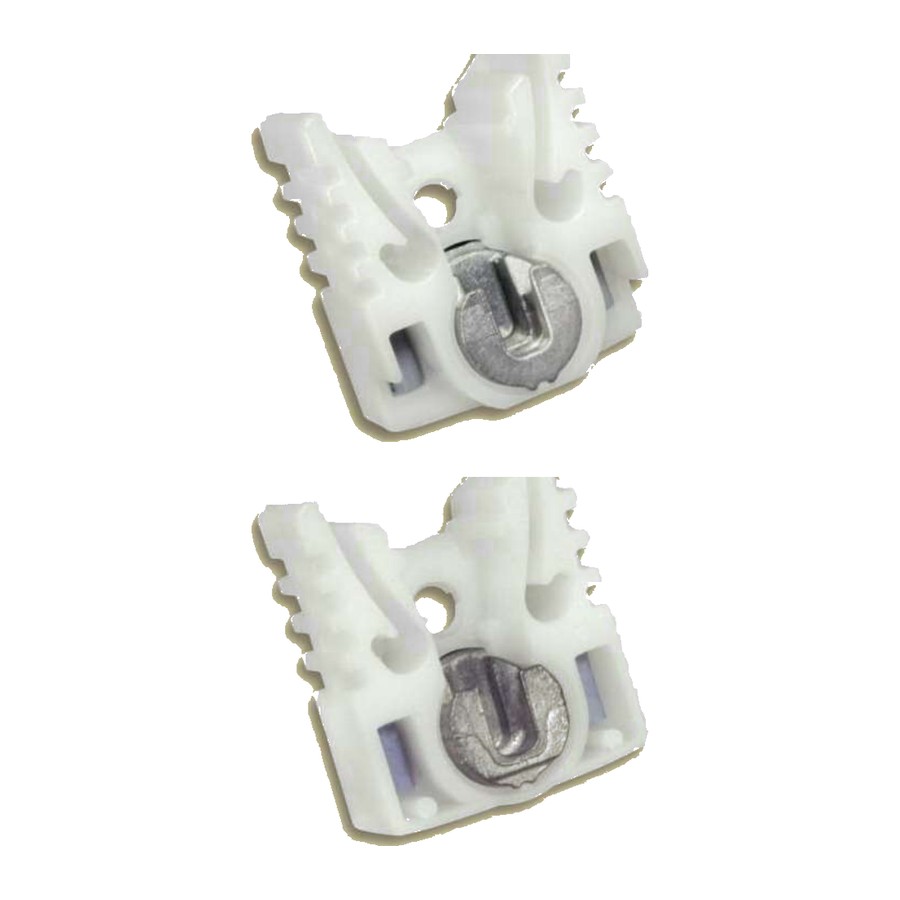

PivotTrue® G3 Coil Balance Shoes

Material

Glass-filled nylon with die cast zinc cam

Drop-in balance shoes in 1/2" (.550") and 3/4" (.890") widths with a full-face metal-on-metal interlock between sash and frame. Glass-filled nylon body, die cast zinc cam. PDF spec sheet available.

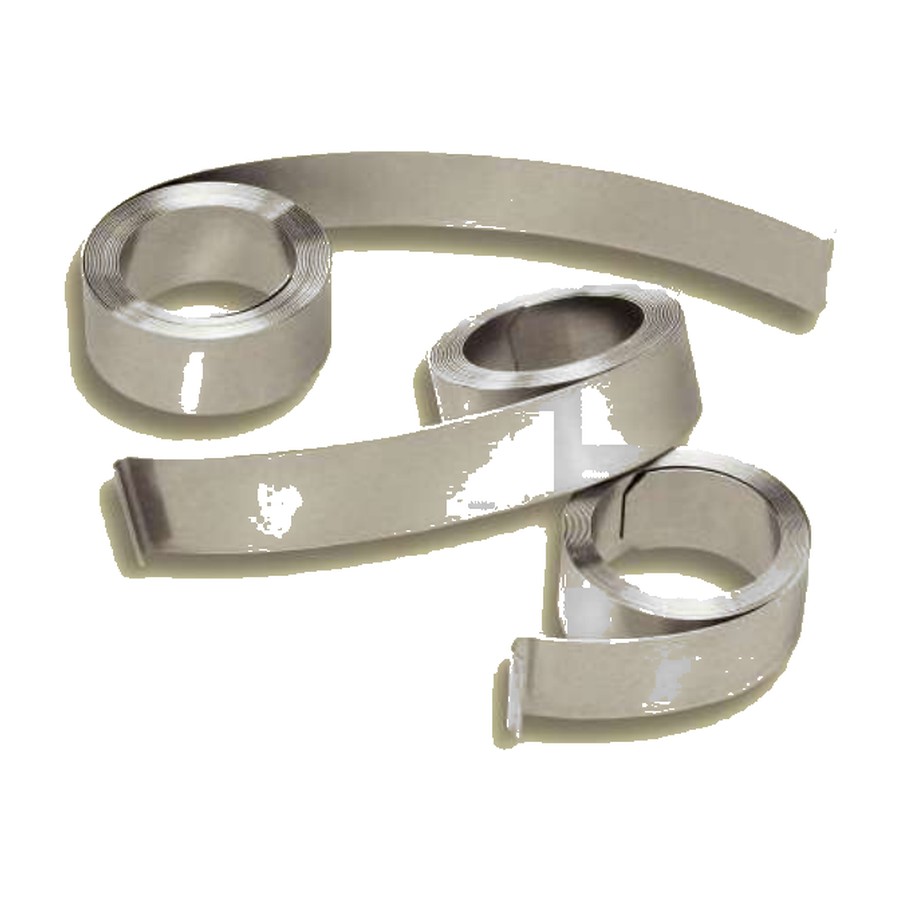

PivotTrue® Coil Hook Springs & Spring Holders

Material

301 stainless steel

AAMA 902-07 certified stress-relieved 301 stainless coil springs in 3/8", 1/2", and 3/4" widths, tandem or standard, with stackable dove-tail holders that take up to four springs. PDF spec sheet available.

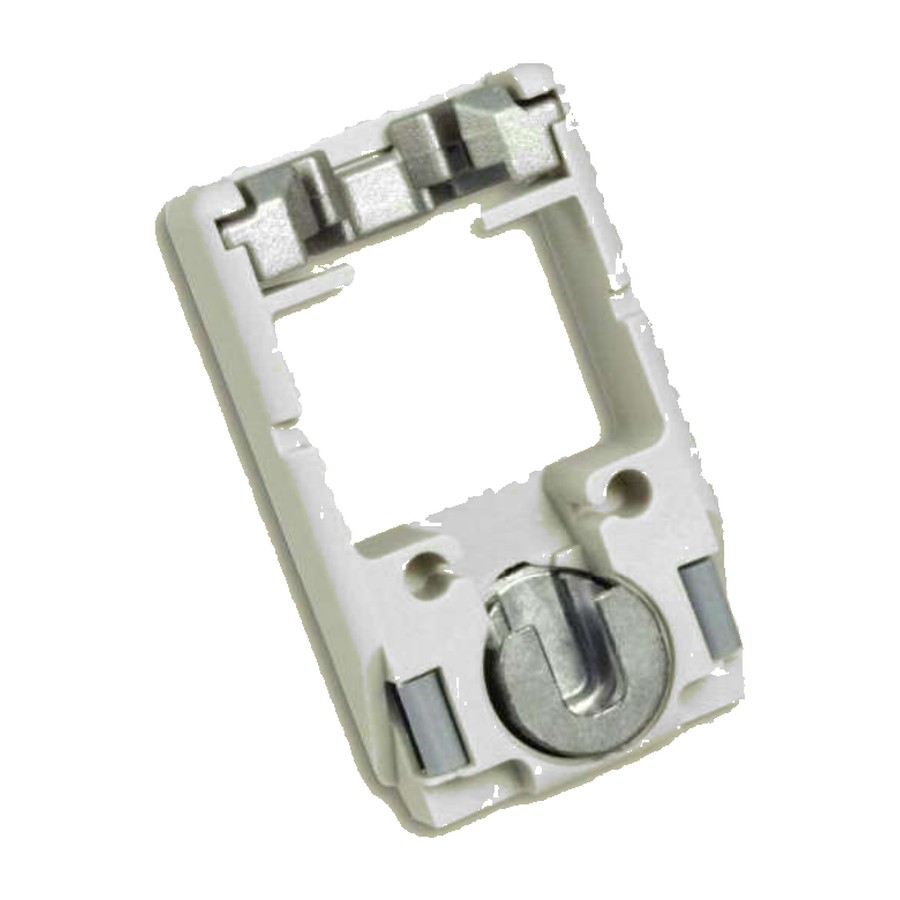

PivotTrue® 1/2" Rear Brake Spiral Shoe

Material

Glass-filled nylon with die cast zinc cam

1.25" x .50" G2 rear brake shoe for spiral balances, with a brake that engages at as little as 15° of sash tilt-in and ten brake pad sizes to match the balance pocket. PDF spec sheet available.

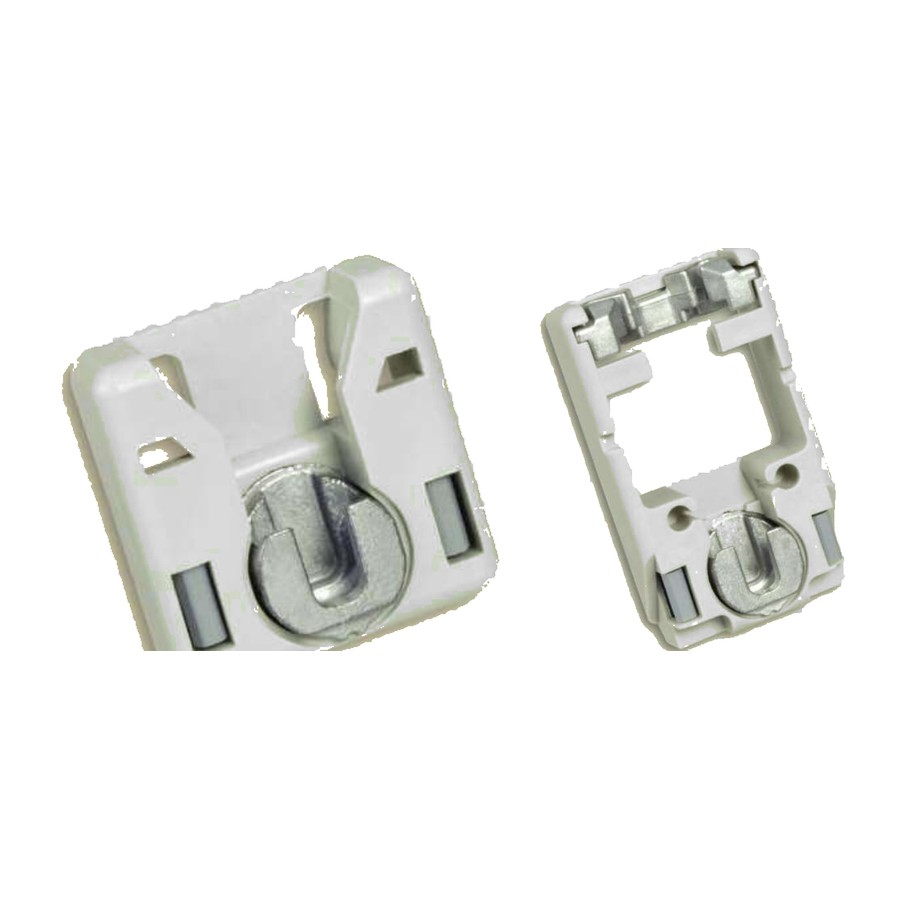

PivotTrue® Rear Brake Block & Tackle Shoes

Material

Glass-filled nylon with die cast zinc cam

1.25" x .50" G2 block and tackle balance shoes in short and tall bodies, for hook or lug type connection, with rust-resistant components throughout. PDF spec sheet available.

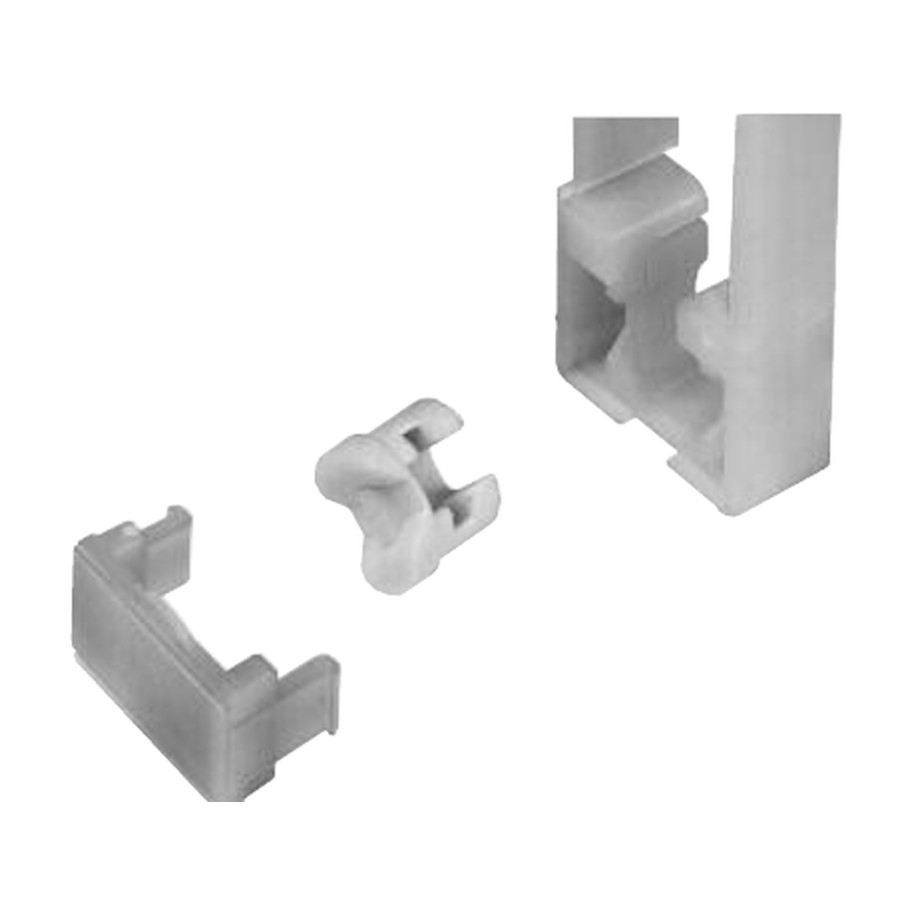

PivotTrue® Balance Shoe Brake Pads

Interchangeable rear brake pads in ten extensions from .035" to .125", colour coded so the pad can be matched to the balance pocket depth. PDF sizing guide available.

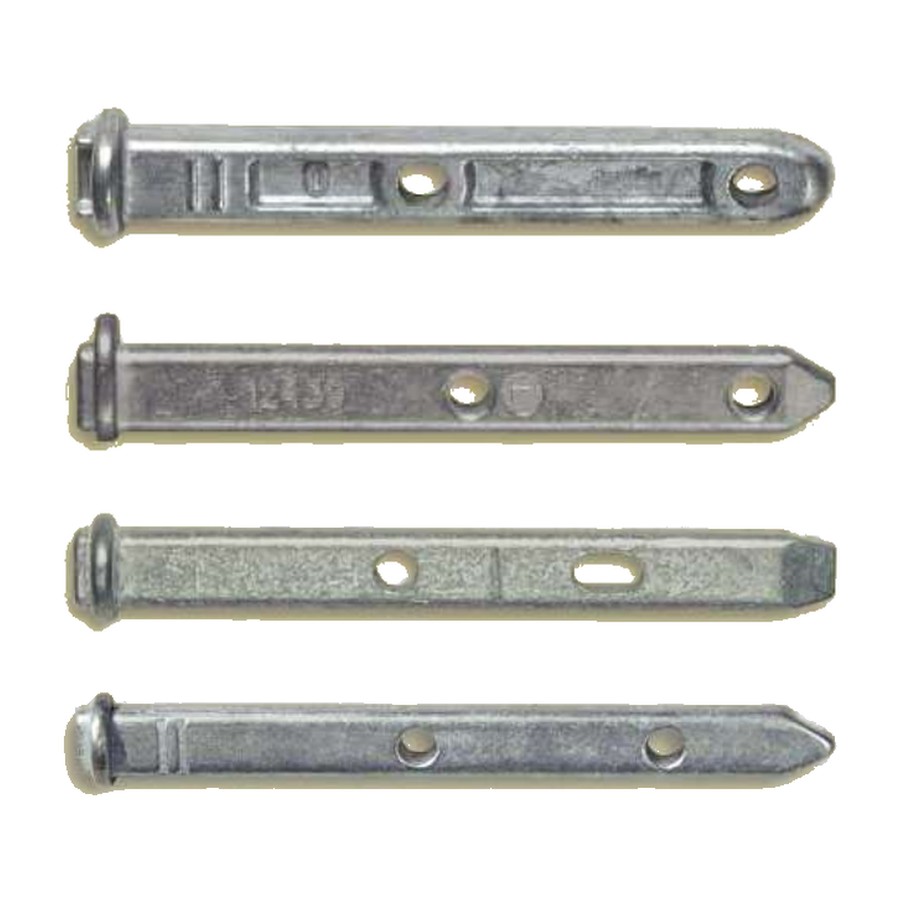

PivotTrue® 1/2" Pivot Bars

Material

Die cast zinc alloy

High strength zinc alloy pivot bars with the patented interlocking head, in straight, offset, and tilt-latch styles for 1/2" balance shoes. PDF spec sheet available.

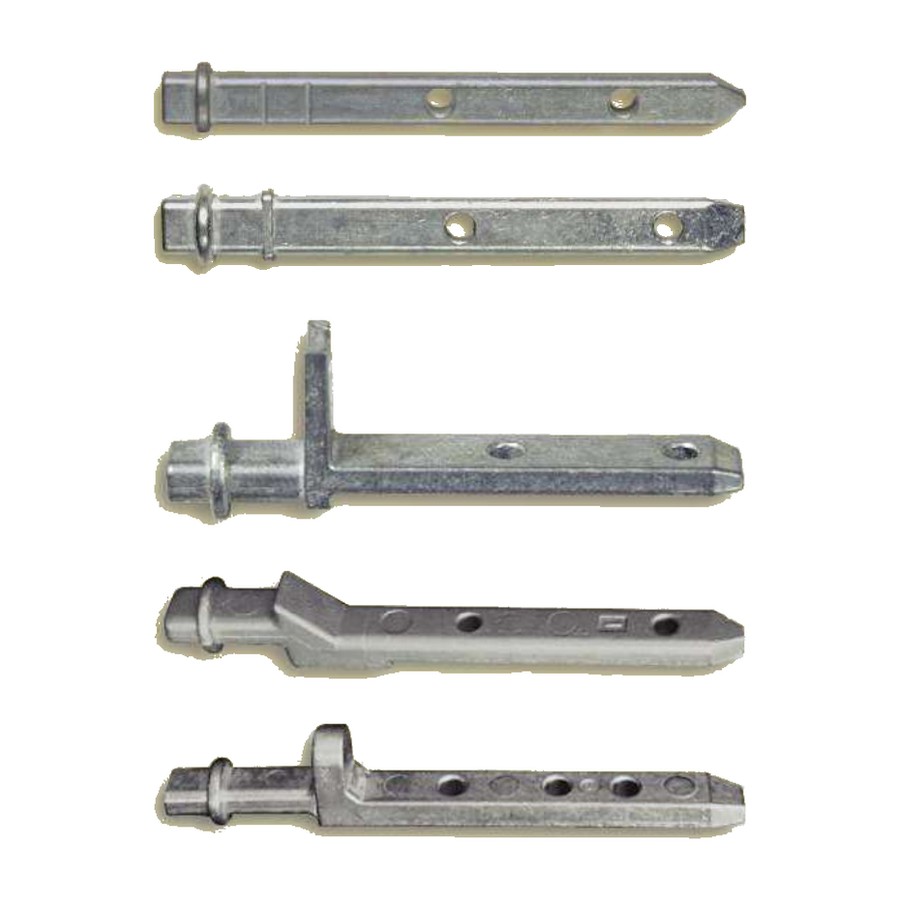

PivotTrue® 3/4" (.890") Pivot Bars

Material

Die cast zinc alloy

High strength zinc alloy pivot bars with the patented interlocking head, sized for 3/4" (.890") balance shoes in straight and tilt-latch configurations. PDF spec sheet available.

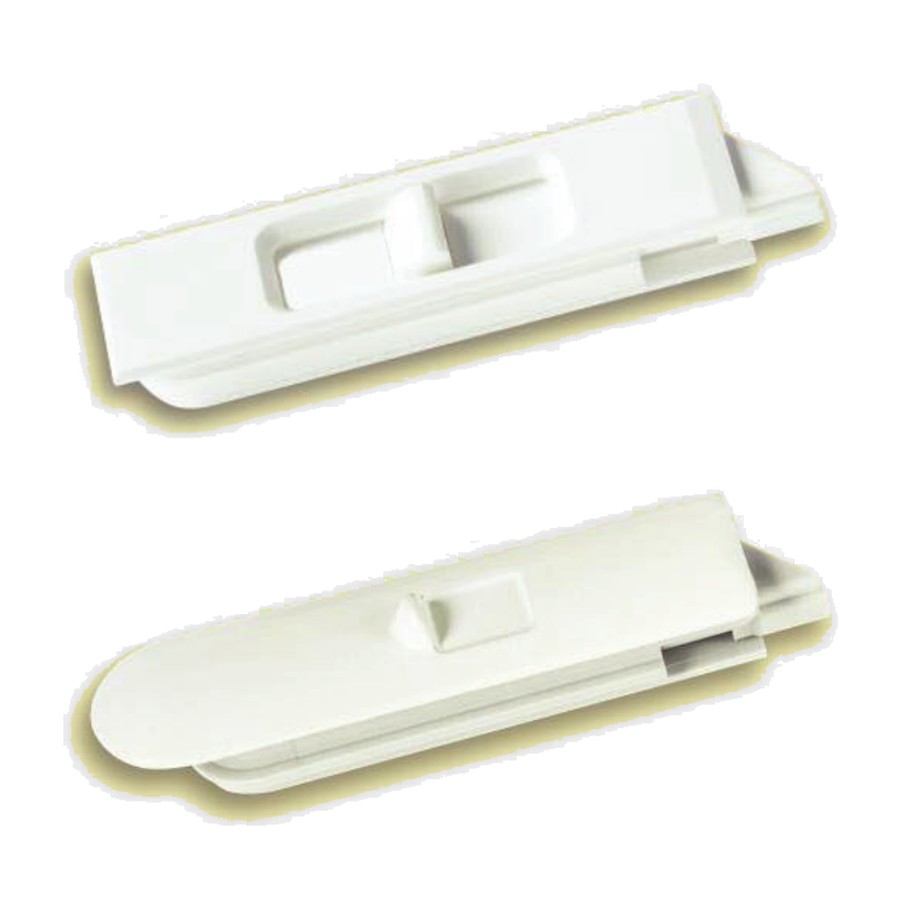

SightLine™ SC-1 Flush Tilt Latch

Material

High performance nylon with stainless steel spring

Fastenerless snap-in tilt latch for vinyl hung windows. An aggressive stile snap engages deep into the sash, and a continuous .090" rail wraps the housing against structural load. 12 latches, 2 housing styles, and 9 actuators. PDF selection guide available.

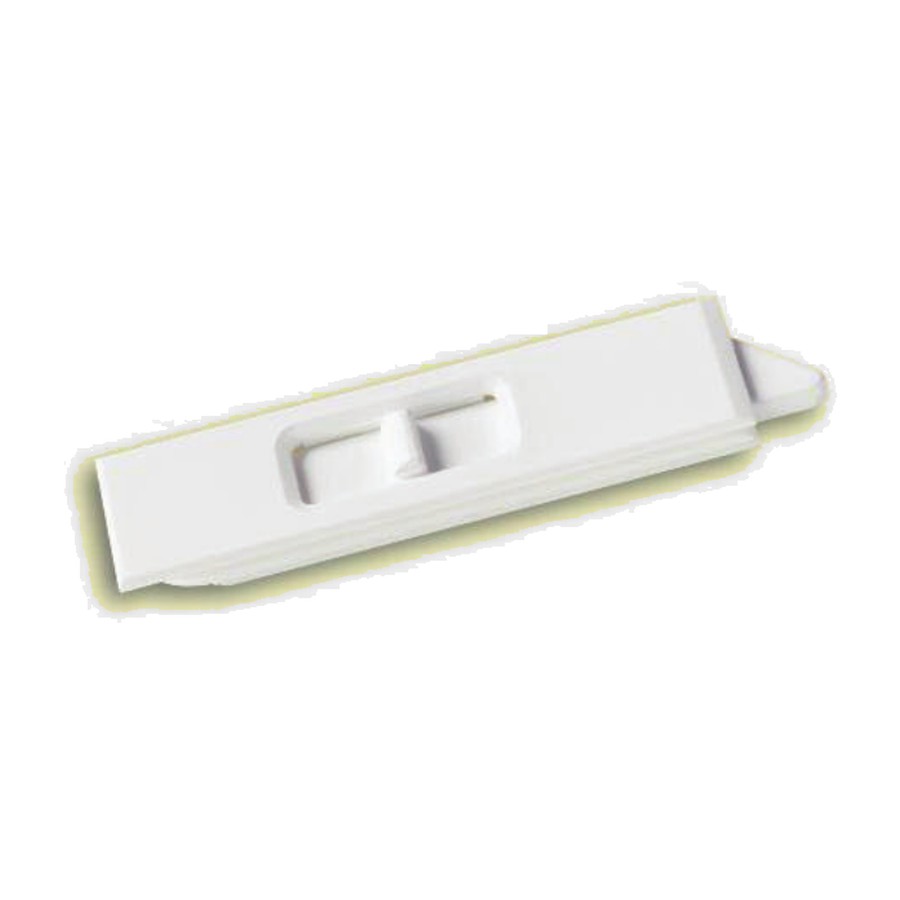

SightLine™ SL-1 Flush Tilt Latch

Material

High performance nylon with stainless steel spring

Low profile snap-in tilt latch with an integrated actuator, built for shallow .258" sash pockets. Solid nose construction and a continuous .090" rail, in a choice of 2 latches and 6 housings. PDF spec sheet available.

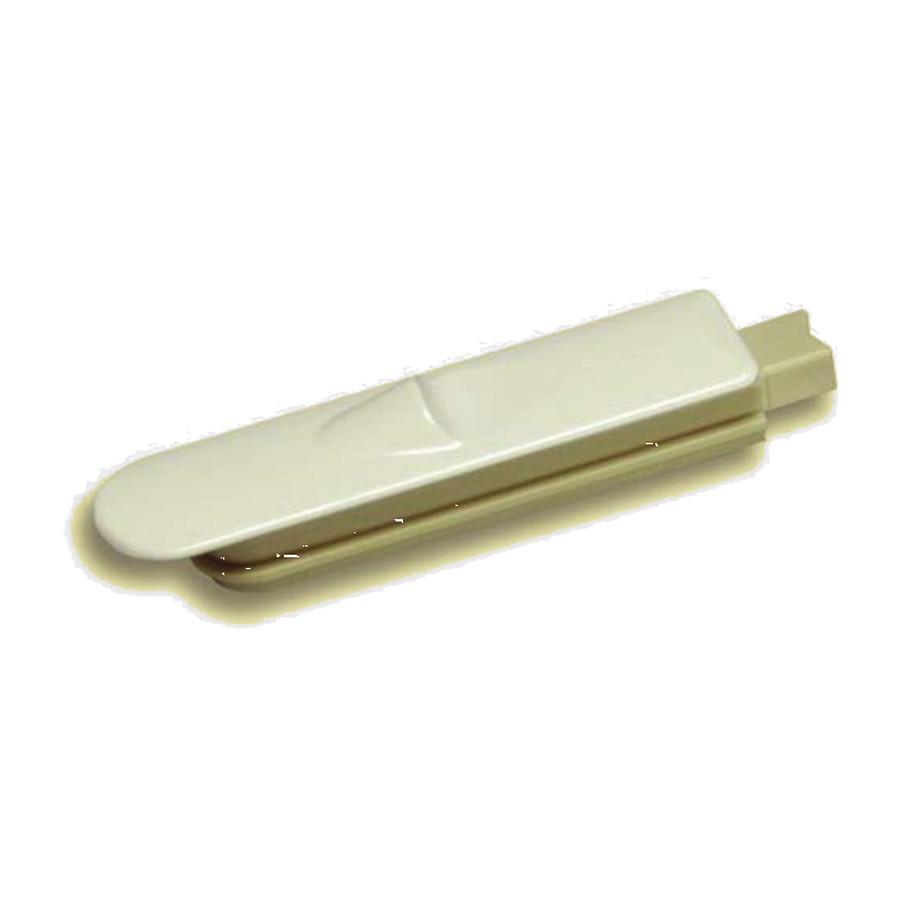

SightLine™ SR-1 Flush Tilt Latch for Wood — Small

Material

High performance nylon with stainless steel spring

Snap-in tilt latch for wood check rails, seated by friction fit or a single screw. Continuous .090" rail, chamfered housing edge, and a choice of 4 plastic or 3 metal actuators. PDF spec sheet available.

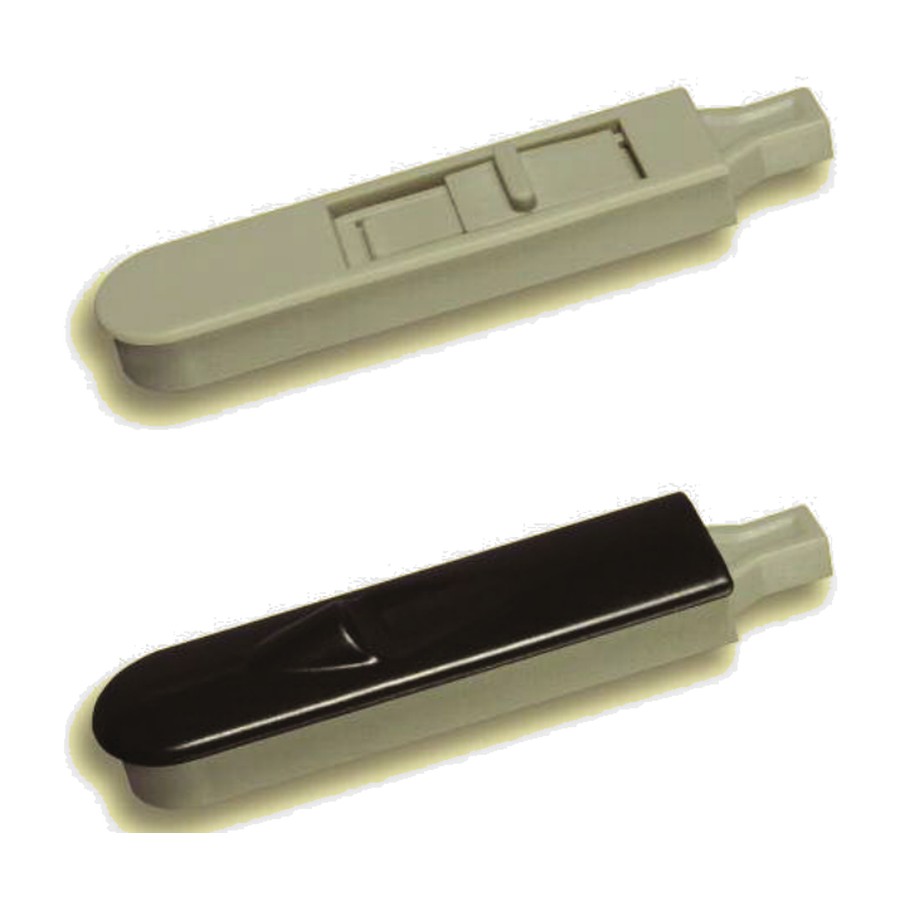

SightLine™ SR-2 Flush Tilt Latch for Wood

Material

Glass fiber reinforced nylon with stainless steel spring

Glass fiber reinforced nylon tilt latch that fastens to a wood stile with one or two screws in a standard 9/16" route. Rigid, low profile, with metal or plastic actuator options. PDF spec sheet available.

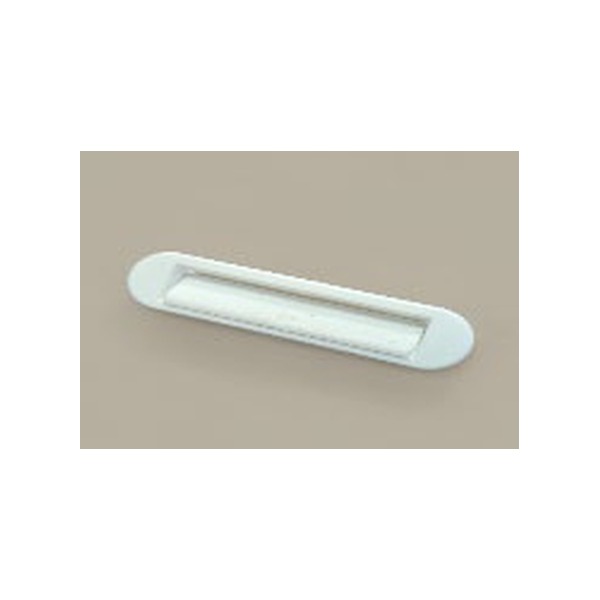

R302NW Drain Flap Housing Assembly

Finish

White

Weep cover with an integral drain flap housing that lets sill water out while the flap closes back against wind and insects. White, standard pack 5000.

980300 Flush Drain Flap Assembly

Finish

Beige or white

Flush-mounted drain flap assembly that sits level with the frame face. Beige (980300TN) and white (980300NW), standard pack 1000 and 10000.

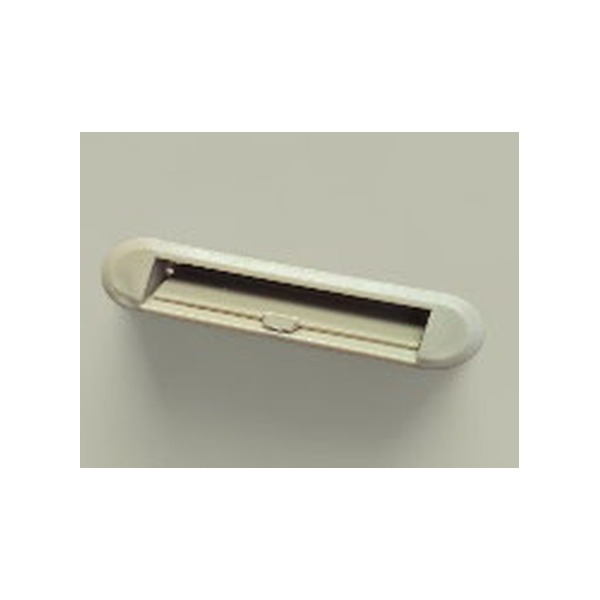

970300 Drain Flap Assembly

Finish

Beige, white, or black

Surface-mounted drain flap assembly for sill and frame weep slots, in beige (970300TS), white (970300NW), and black (970300BK). Standard pack 1000 to 5000 by colour.

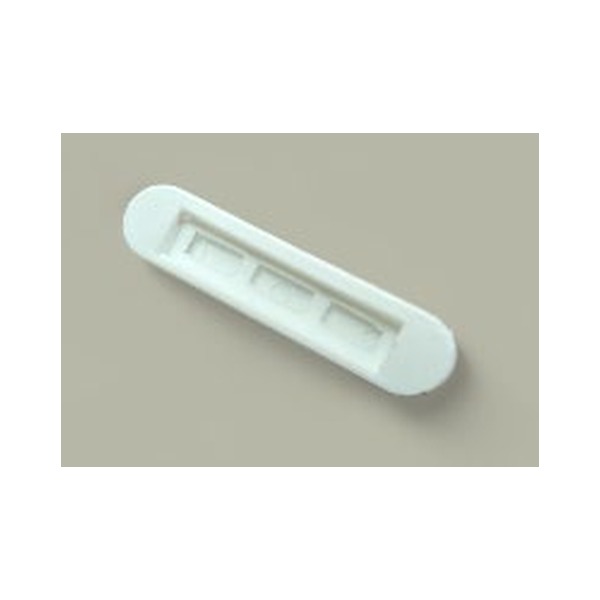

65605001 45° Large Weep

Finish

White

Large weep cover angled at 45° for sloped sill and frame faces. White, standard pack 5000.

60606002 Large Recessed Weep

Finish

White

Large recessed weep cover that seats into a routed pocket so it finishes flush with the frame. White, standard pack 5000.

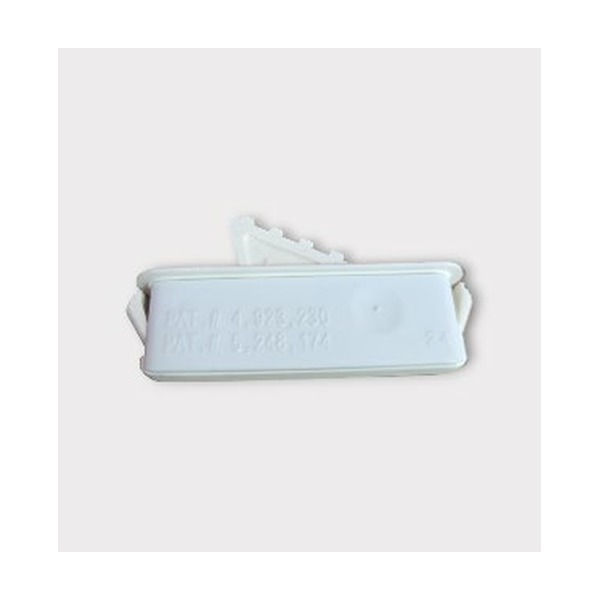

W1491 Sash Travel Limiter

Sash travel limiter that caps how far the sash opens, supplied left hand (W149150S1) and right hand (W149160S1). Standard pack 200.

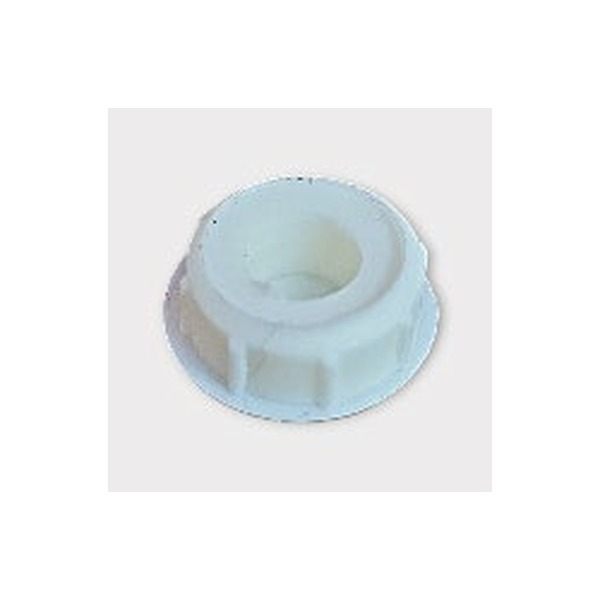

9946001 Plug Button — 3/8"

Snap-in plug button for closing 3/8" holes in the sash or frame after assembly. Standard pack 1000.

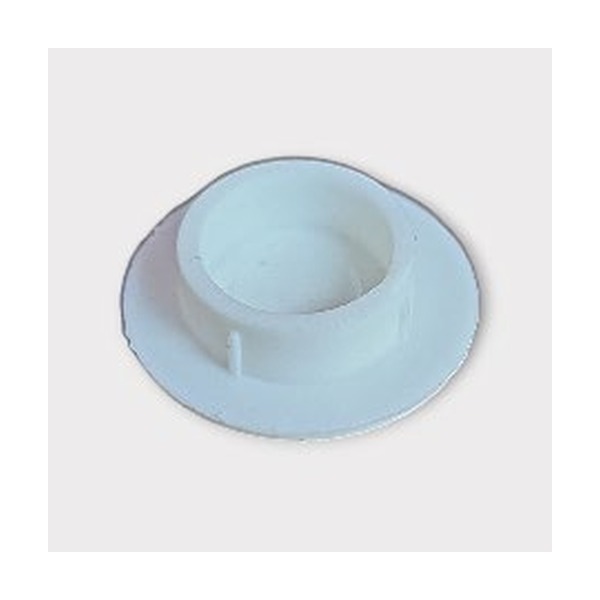

101174001 Hole Plug — 1/2"

Flanged hole plug for closing 1/2" holes in the sash or frame after assembly. Standard pack 5000.

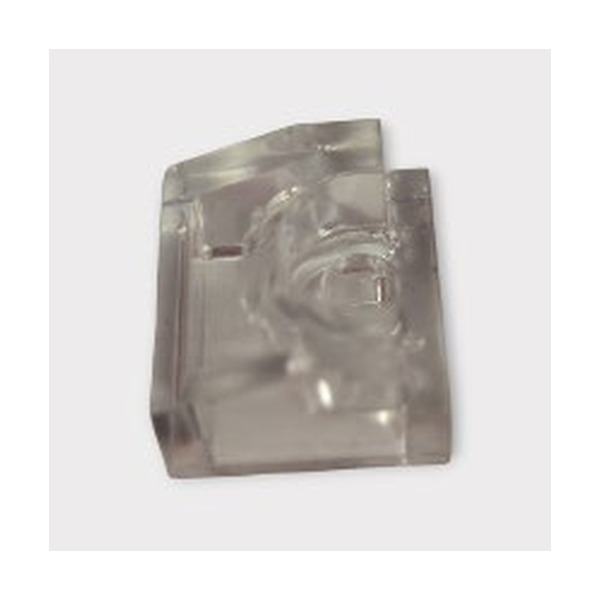

11780352 Sash Ramp — 7/16"

7/16" sash ramp that lifts and guides the sash as it closes. Standard pack 2500.

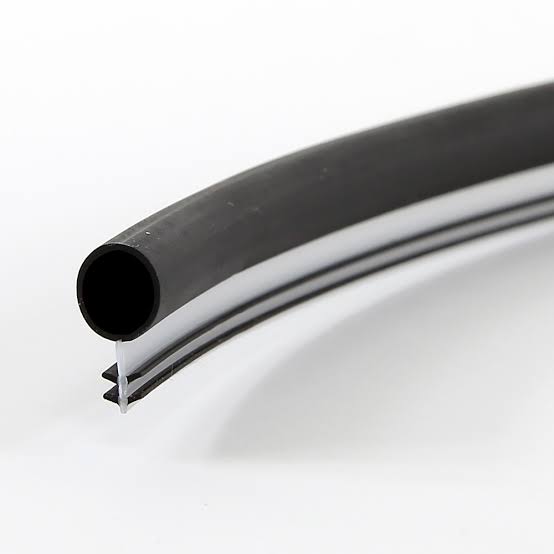

Window Weatherstripping

High-performance weatherstripping for window frames. Brochure available on request.

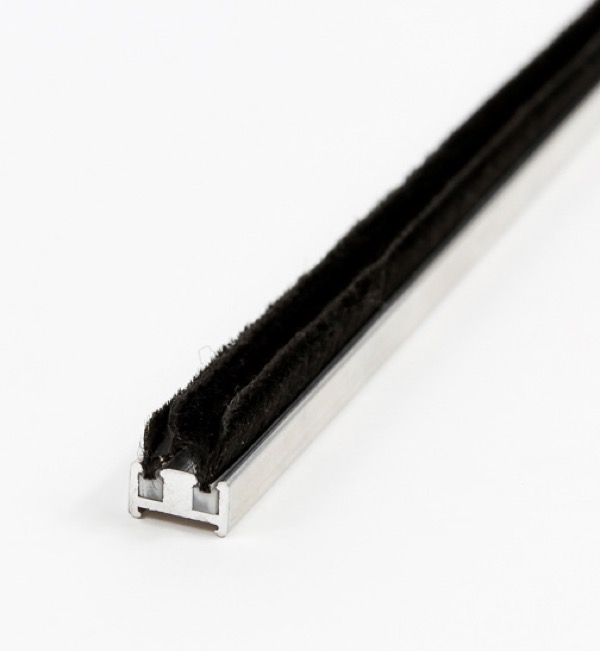

Ultrafab Astragal Replacement Pile Weatherstrip

Ultrasonically welded, replaceable pile weatherstrip for restoring worn astragals on commercial entrance doors.

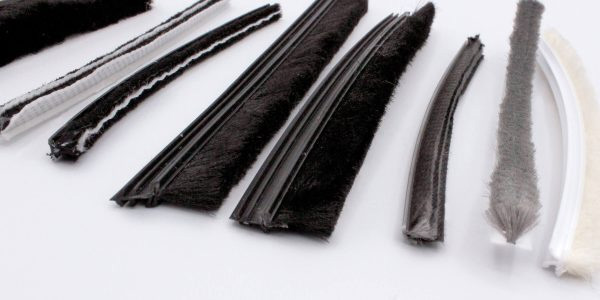

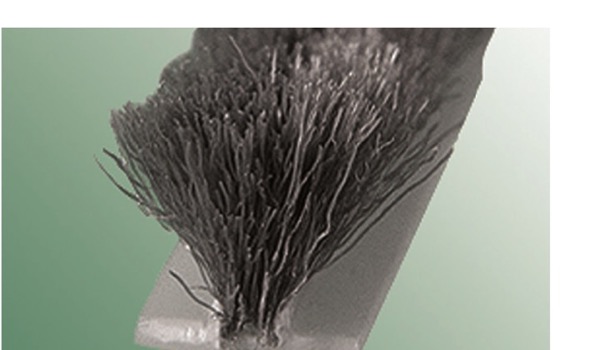

Ultrafab Brush & Pile Weatherseals

Ultrasonically welded pile weatherseals — Tri-Fin, Five Fin, Ultra Pile, Ultra Fin, and Ultra Tect profiles for low-friction sliding window sash sealing.

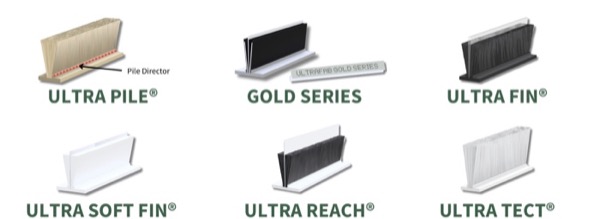

Ultrafab Weatherseal Product Line

Full product line overview of Ultrafab pile and extruded window weatherseals, backing options, and mounting configurations.

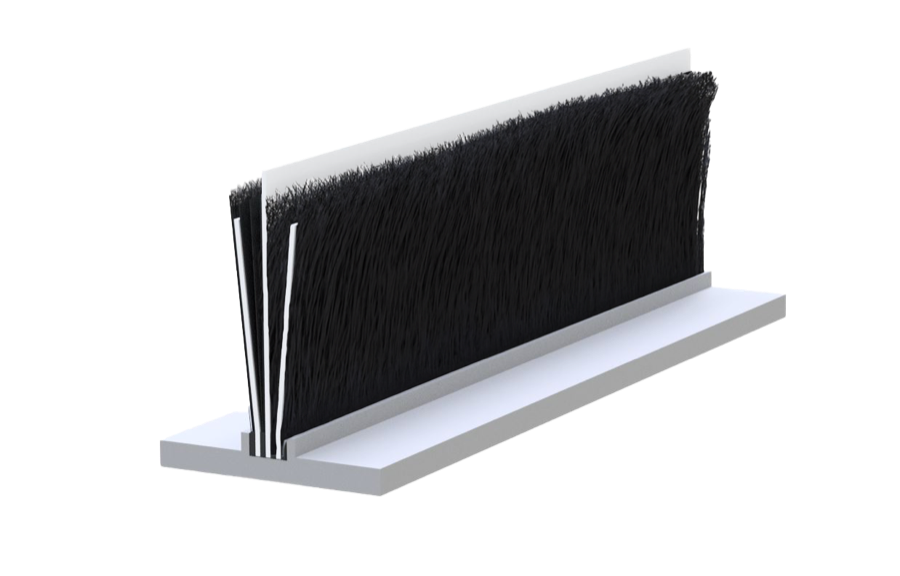

Ultrafab Tri-Fin®

Pile weatherseal with three integrated barrier fins over self-supporting pile with built-in pile directors, giving up to 25% better air infiltration performance than a single fin. Pile heights .200" to .430", backing widths .187" to .310".

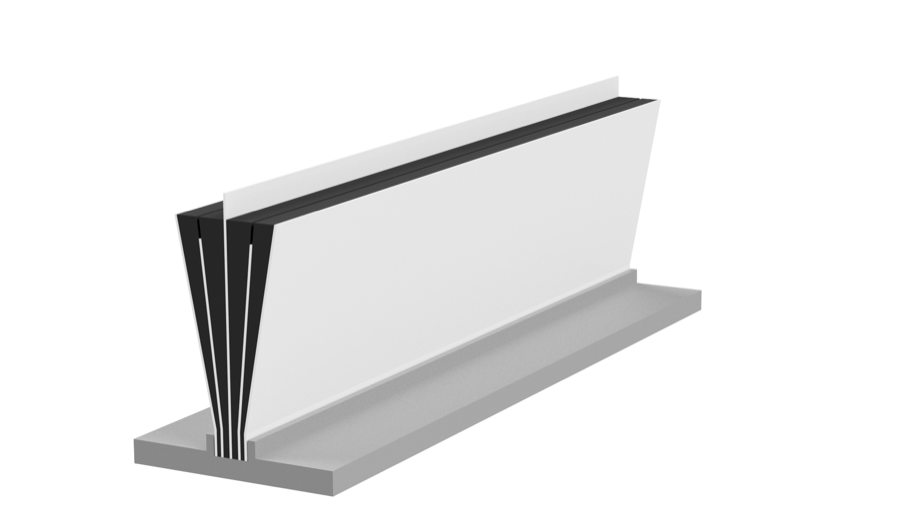

Ultrafab Five Fin®

Five-fin pile weatherseal built with silicone-treated fibres to cut air and water infiltration and reduce noise transfer — at least 20% less air infiltration than single-fin designs, tested to AAMA 701-11. Ultra Pro® U-shaped or adhesive backing.

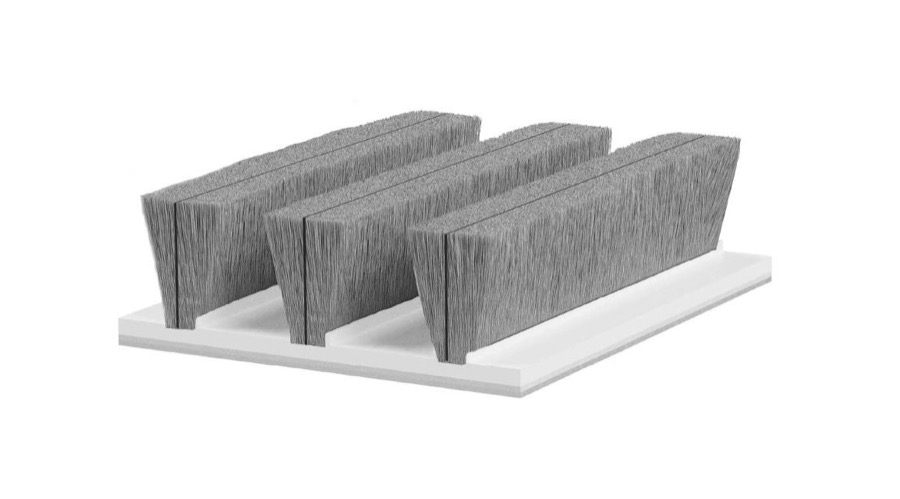

Ultrafab Ultra Plug®

Multi-row dust plug weatherseal on rigid polypropylene backing with integrated pile and fin directors, for openings where a T-slot or kerf design will not fit. Pile heights .150" to .750", adhesive or flex backing, five standard colours.

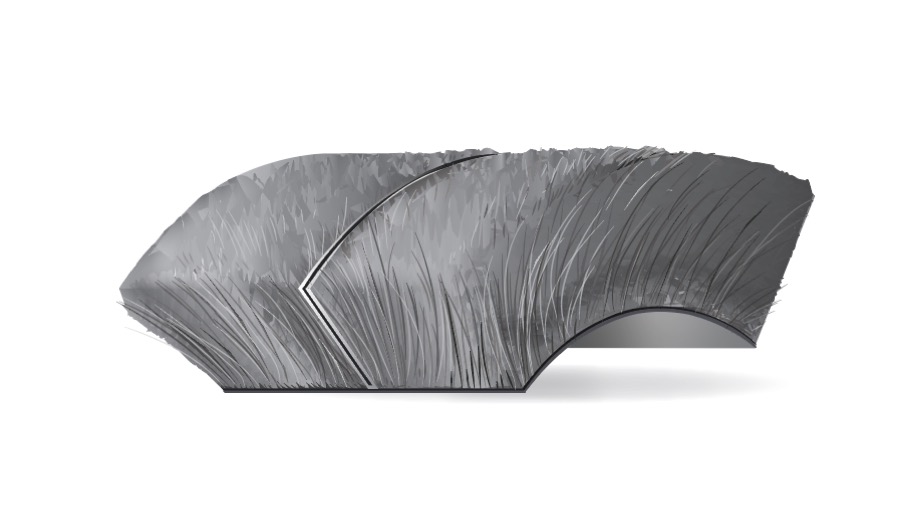

Ultrafab Ultra Bend®

Flexible polypropylene flex-back dust plug with dense fibre construction that conforms to irregular surfaces and radius contours without snapping off, wrapping components for 360° friction reduction.

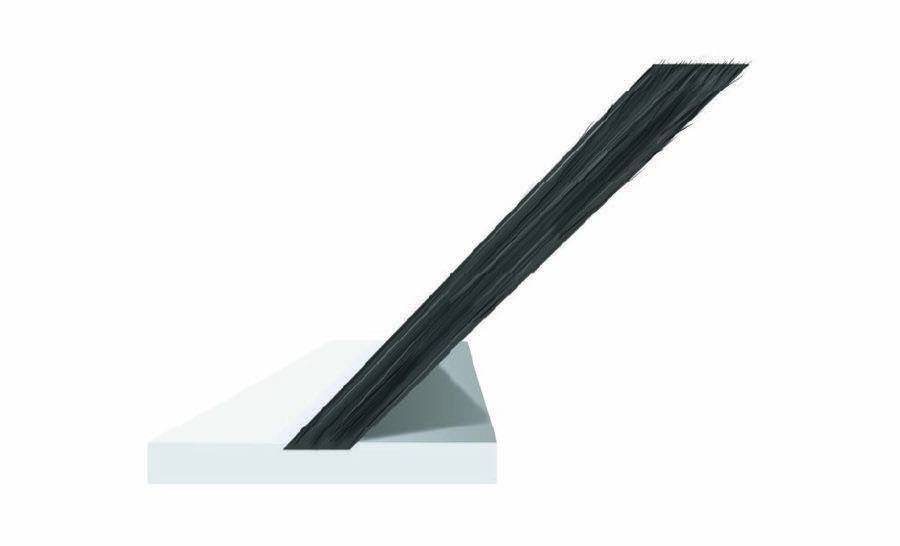

Ultrafab Angle Pile

Combined monofilament and fibre pile seal for roll screens, bug seals, and ventilation. The monofilament strands lock into the screen grid while the fibre holds the screen in place and acts as an insect barrier. Available in 45°, 60°, and 75° angles with T-slot or adhesive backing.

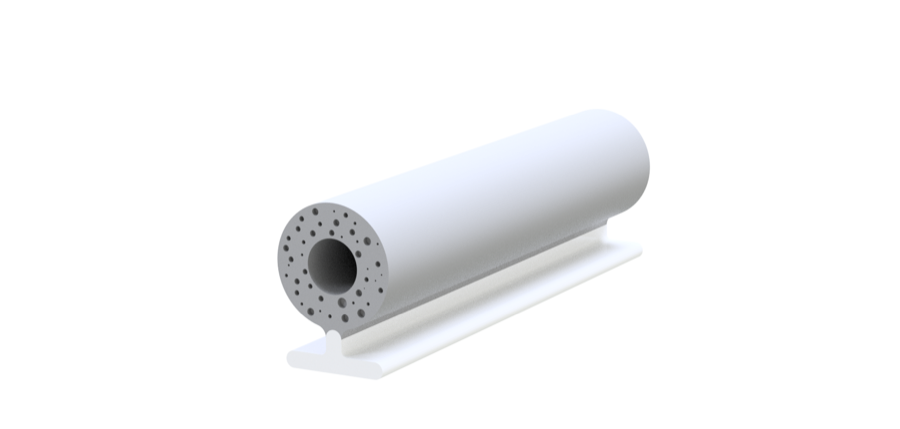

Ultrafab Ultra Cell® Micro-Cellular Foam Seals

Proprietary micro-cellular closed-cell TPV foam seal with excellent compression set resistance, low closing forces, UV stability, and full heat-weldability — wraps 90° corners. Includes Ultra Glide S® low-friction coating for sliding surfaces.

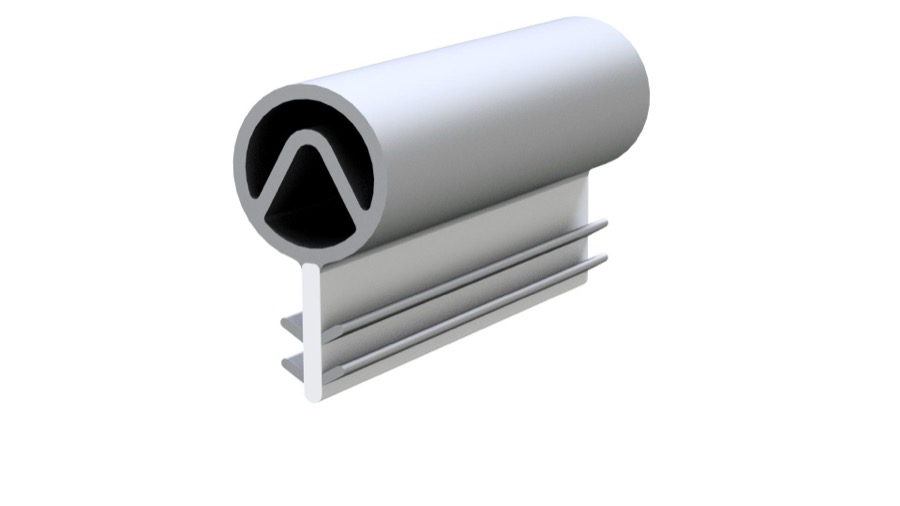

Ultrafab Multi-Hollow Bulb Seals

Dual-bulb extruded seal whose inner bulb engages at 25% compression, cutting initial closing forces while holding compression set over 5,000 cycles. The multi-chambered profile improves thermal and acoustic performance.

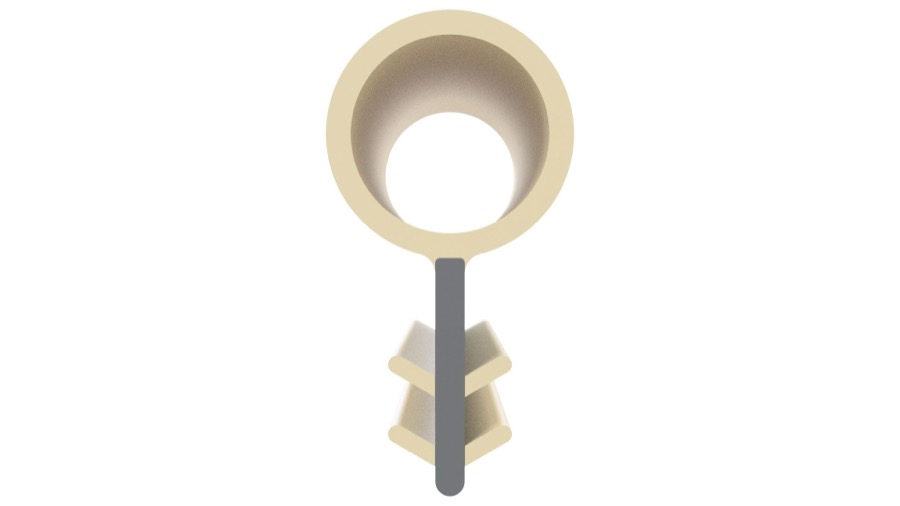

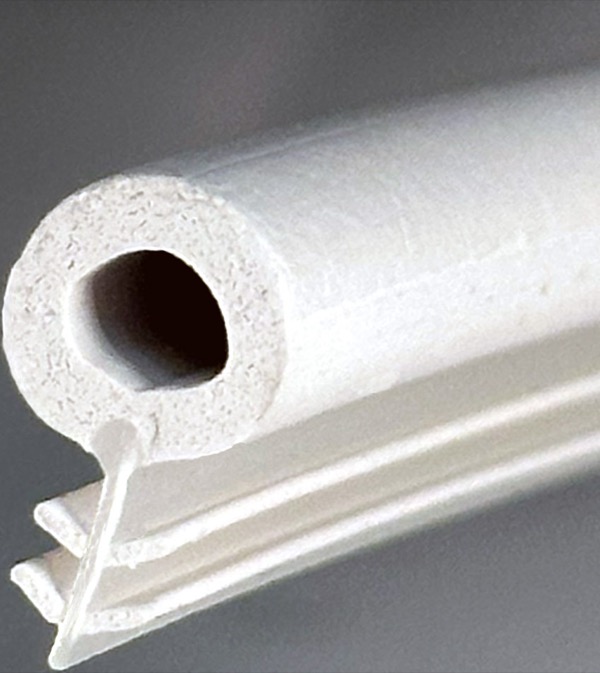

Ultrafab Kerf Mounted Extruded Seals

UV-stabilised TPV push-in bulb seals for single and double hung windows, casement windows, and door frames, with excellent compression set resistance and weatherability. Standard profiles E101 to E820, optional Ultra Glide® low-friction formulation.

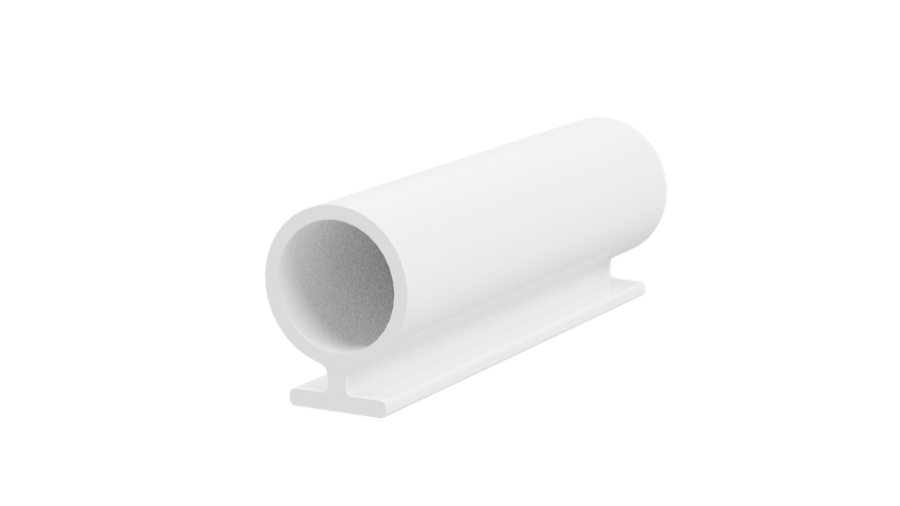

Ultrafab T-Slot Extruded Seals

UV-stabilised TPV compression seals with an easy-slide base for fast installation in casement, hung, sliding, and tilt-turn windows. Optional Ultra Glide® low-friction formulation.

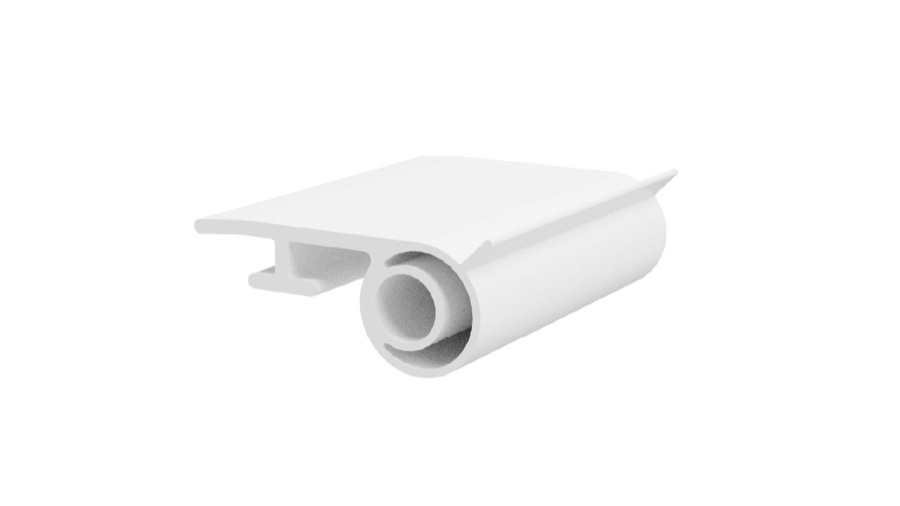

Ultrafab Flexible & Rigid PVC Seals

UV-stabilised flexible or rigid PVC extruded profiles for casement, sliding, hinged, and tilt-turn systems. Supplied as lineals, welded into the sash, or adhesive-backed in standard and custom configurations.

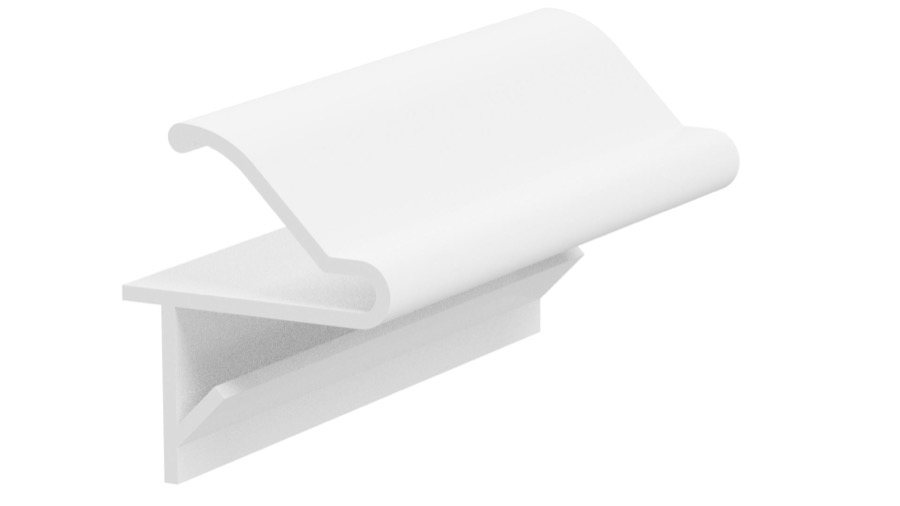

Ultrafab Extruded Leaf & Flap Seals

UV-stabilised polypropylene leaf and flap profiles suited to sliding applications with low closing force. Five standard colours, supplied as lineals or cut to custom lengths.

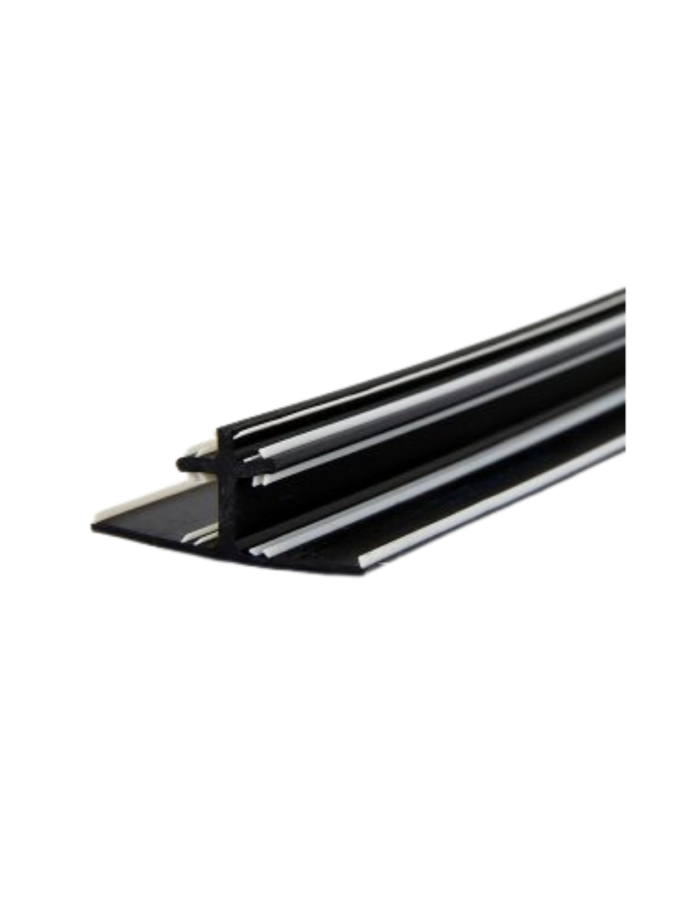

Ultrafab Custom Extruded Profiles and Seals

Custom extruded seals in multiple profiles and shapes, in thermoplastic and thermoset compounds including polyethylene, TPV, and rigid or flexible PVC. Co-extrusion, integrated magnetic strips, and T-slot, kerf, or adhesive-backed mounting options.

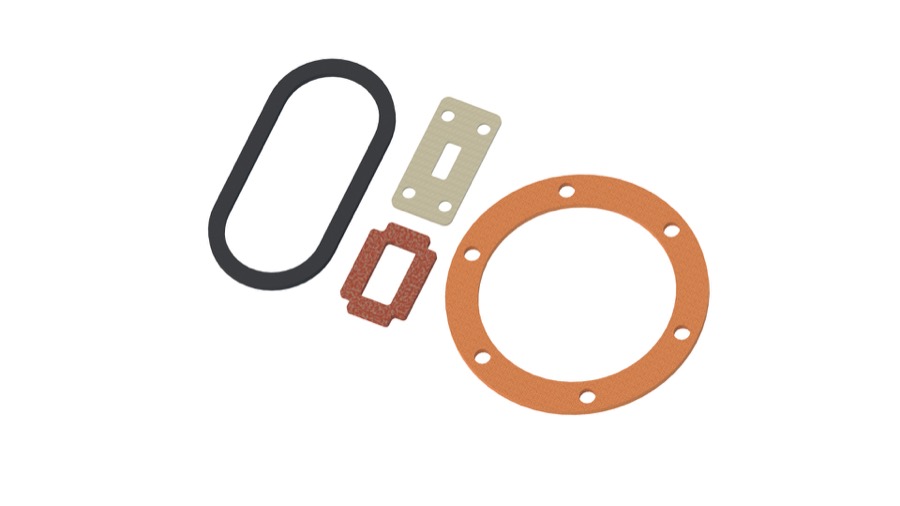

Ultrafab Foam Gaskets / Rubber Sponge

Foam gaskets and rubber sponge seals in polyurethane, polyethylene, PVC, EPDM, neoprene, SBR, and natural rubber, with strong performance across a broad temperature range and good acoustic properties. Adhesive-backed options and perforated vinyl or metalised polyester film substrates available.

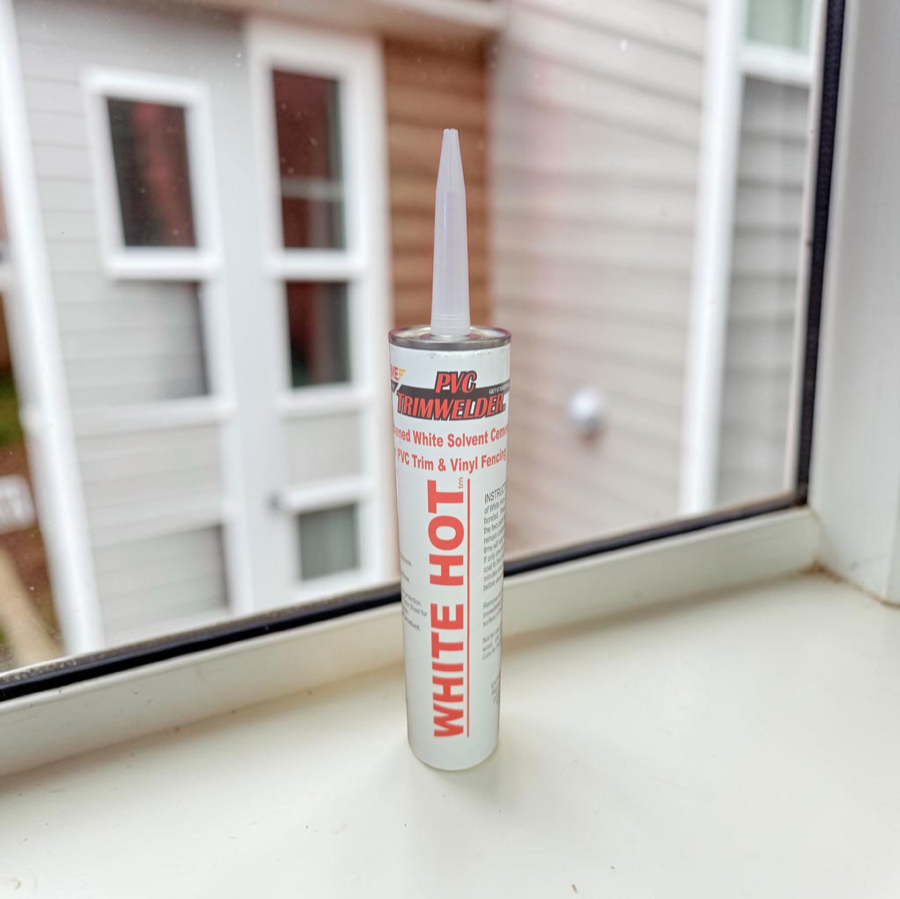

PVC Trimwelder – White Hot Cement

High-performance white PVC solvent cement for trim and vinyl applications — fast-acting, UV-protectant, sandable, and paintable. PDF spec sheet available.

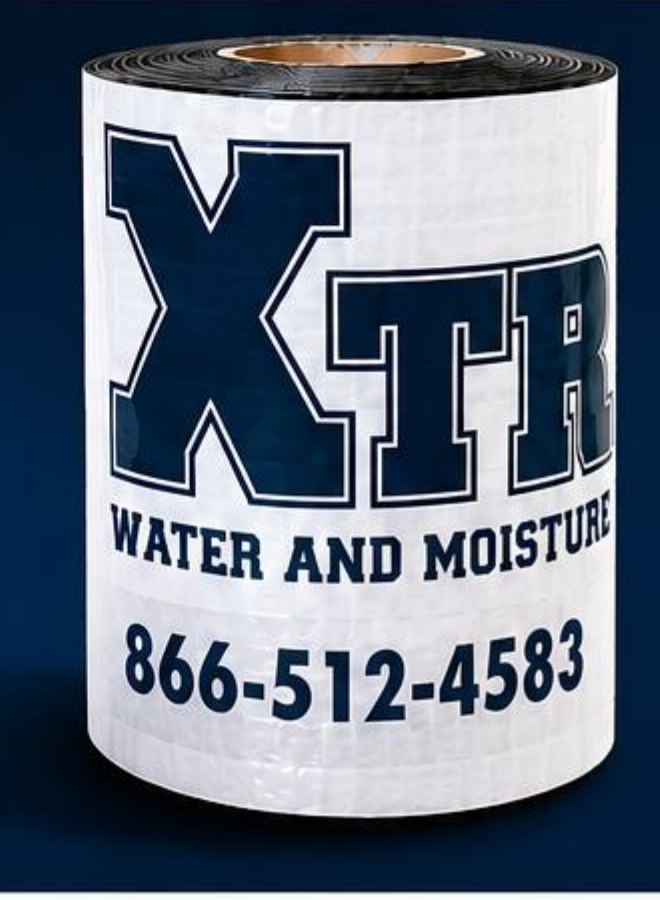

XtraFlash Water & Moisture Barrier System

Aggressive self-adhered butyl/rubberized asphalt flashing membrane that self-seals around fasteners for long-lasting weather protection at windows, doors, and openings. PDF flyer available.

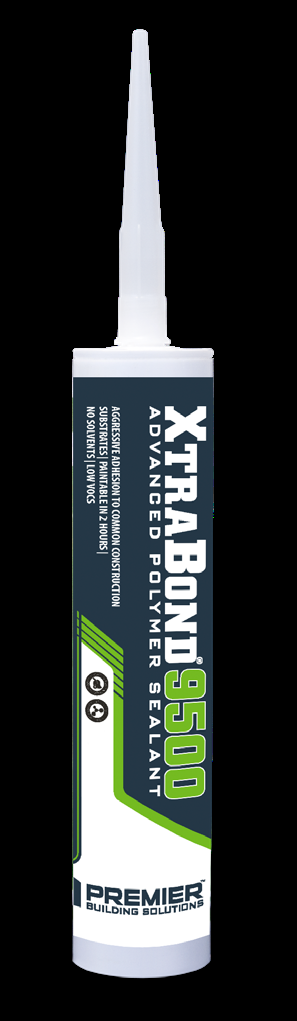

XtraBond 9500 Advanced Polymer Sealant

One-component, low-modulus, moisture-curing advanced polymer adhesive and sealant with aggressive adhesion to common construction substrates. Paintable in 2 hours, no solvents, low VOCs. PDF spec sheet available.

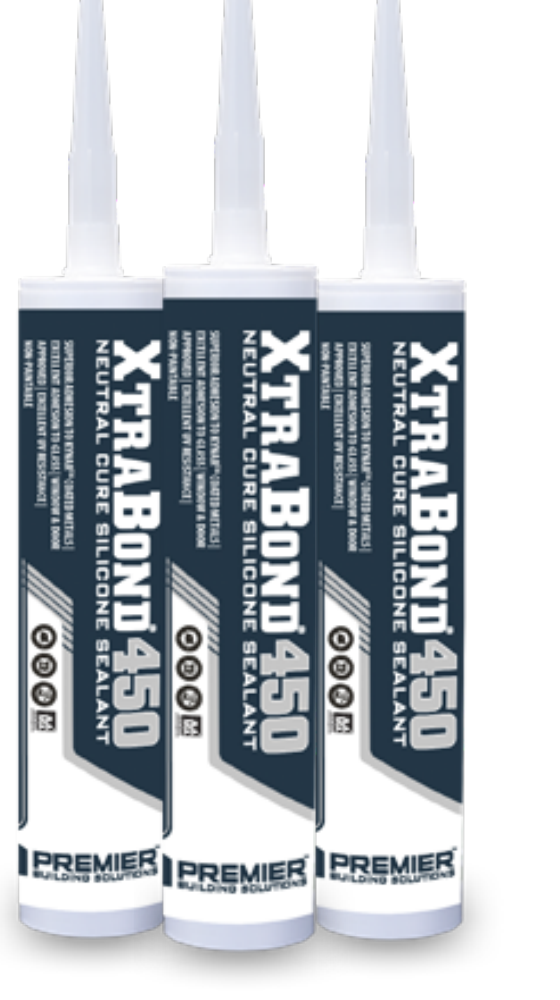

XtraBond 450 Neutral Cure Silicone Sealant

One-component, non-sag, permanently flexible neutral cure silicone sealant with excellent primerless adhesion to vinyl, glass, aluminum, wood, and sheet metal. Window & door approved. PDF sell sheet available.
